mxm_1785x.h File Reference

Headers for the driver for the MAX17841B ASCI and MAX1785x monitoring chip. More...

#include "database_cfg.h"
#include "mxm_cfg.h"
#include "mxm_17841b.h"
#include "mxm_1785x_tools.h"
#include "mxm_basic_defines.h"
#include "mxm_battery_management.h"
#include "mxm_crc8.h"

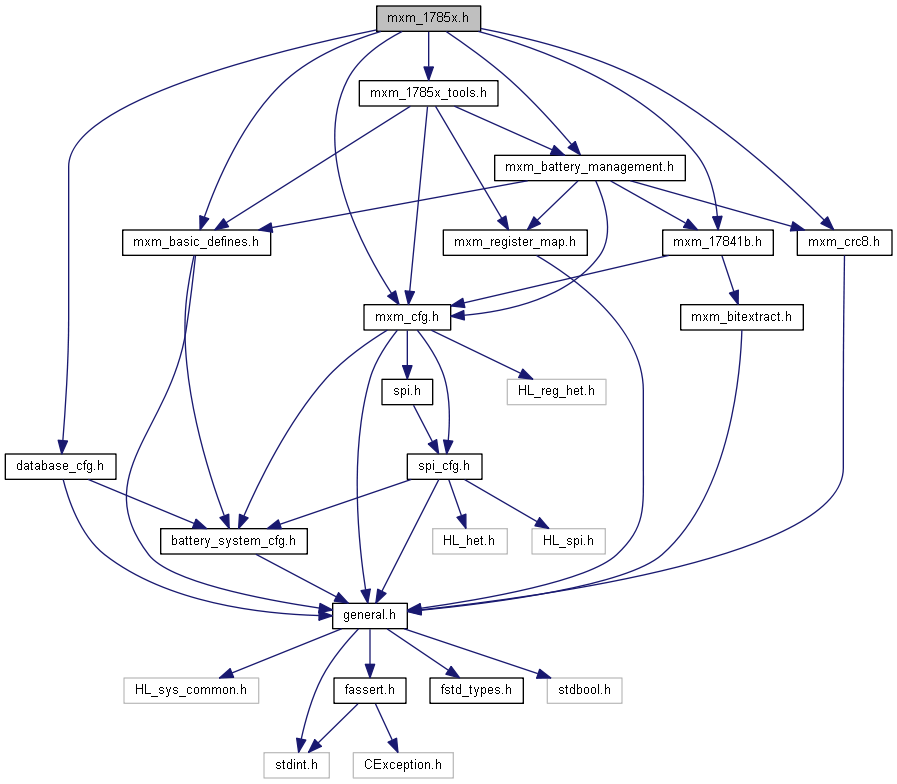

Include dependency graph for mxm_1785x.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions

void MXM_StateMachine (MXM_MONITORING_INSTANCE_s *pInstance)
 Battery monitoring driver for MAX1785x battery monitoring ICs. More...

STD_RETURN_TYPE_e TEST_MXM_ParseVoltageReadallTest (MXM_MONITORING_INSTANCE_s *pInstance)

STD_RETURN_TYPE_e TEST_MXM_ParseVoltagesIntoDB (MXM_MONITORING_INSTANCE_s *pInstance)

MXM_MONINTORING_STATE_e TEST_MXM_MonGetVoltages (MXM_MONITORING_INSTANCE_s *pInstance, MXM_REG_NAME_e regAddress)

void TEST_MXM_HandleStateWriteall (MXM_MONITORING_INSTANCE_s *pInstance, MXM_STATEMACHINE_OPERATION_STATES_e nextState)

bool TEST_MXM_HandleStateReadall (MXM_MONITORING_INSTANCE_s *pInstance, MXM_REG_NAME_e registerName, MXM_STATEMACHINE_OPERATION_STATES_e nextState)

STD_RETURN_TYPE_e TEST_MXM_ParseVoltageReadall (uint8_t *volt_rx_buffer, uint16_t volt_rx_buffer_len, MXM_DATA_STORAGE_s *datastorage, MXM_CONVERSION_TYPE_e conversionType)

void TEST_MXM_ProcessOpenWire (MXM_MONITORING_INSTANCE_s *pInstance, DATA_BLOCK_OPEN_WIRE_s *pDataOpenWire)


Detailed Description

Headers for the driver for the MAX17841B ASCI and MAX1785x monitoring chip.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

  1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
  3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

  • ″This product uses parts of foxBMS®″
  • ″This product includes parts of foxBMS®″
  • ″This product is derived from foxBMS®″
Author
foxBMS Team
Date
2019-01-15 (date of creation)
Updated
2020-09-10 (date of last update)
Prefix
MXM

def

Definition in file mxm_1785x.h.

Function Documentation

◆ MXM_StateMachine()

void MXM_StateMachine ( MXM_MONITORING_INSTANCE_s pInstance)

Battery monitoring driver for MAX1785x battery monitoring ICs.

This module supplies a driver for the Battery Monitoring ICs of the MAX1785x-family by Maxim Integrated.

Entry point for the module is the function MXM_Tick() in mxm_mic.c. It handles the measurement flow and the coordination of the underlying state-machines. Below this layer two state-machines are implemented.

The state-machine in mxm_battery_management.c is executed with the MXM_5XStateMachine()-function. This state-machine exposes commands of the Maxim Battery Management Protocol to the upper layers. Below, it translates these commands into state-changes for the underlying state-machine. This state-machine is implemented in mxm_17841b.c and executed with MXM_41BStateMachine(). It handles the register- and buffer-transactions required for the MAX17841B communication interface (Maxim calls this chip ASCI).

Main state-machine implementation

This state-machine handles the main state of the driver. It runs the self-check, initializes communication and then transitions into the operation state in which it executes the state-machine described in MXM_StateMachineOperation().

Parameters
[in,out]pInstanceused as both input and output (stores state-information, requests and intermediate values)

Definition at line 1934 of file mxm_1785x.c.
