Implementation of some driver that needs a state machine. More...

#include "state-machine.h"

Include dependency graph for state-machine.c:

Macros
#define	EG_FSM_SHORT_TIME (1u)

#define	EG_FSM_MEDIUM_TIME (5u)

#define	EG_FSM_LONG_TIME (10u)

Enumerations
enum	EG_CHECK_MULTIPLE_CALLS_e { EG_MULTIPLE_CALLS_NO , EG_MULTIPLE_CALLS_YES }

Functions
static EG_CHECK_MULTIPLE_CALLS_e	EG_CheckMultipleCalls (EG_STATE_s *pEgState)
	check for multiple calls of state machine trigger function More...

static void	EG_SetState (EG_STATE_s *pEgState, EG_FSM_STATES_e nextState, EG_FSM_SUBSTATES_e nextSubstate, uint16_t idleTime)
	Sets the next state, the next substate and the timer value of the state variable. More...

static void	EG_SetSubstate (EG_STATE_s *pEgState, EG_FSM_SUBSTATES_e nextSubstate, uint16_t idleTime)
	Sets the next substate and the timer value of the state variable. More...

static bool	EG_SomeInitializationFunction0 (void)
	dummy function for initialization substate EG_FSM_SUBSTATE_INITIALIZATION_0 More...

static bool	EG_SomeInitializationFunction1 (void)
	dummy function for initialization substate EG_FSM_SUBSTATE_INITIALIZATION_1 More...

static bool	EG_SomeInitializationFunctionExit (void)
	dummy function to check if the initialization step of the state machine was successful (EG_FSM_SUBSTATE_INITIALIZATION_1) More...

static bool	EG_SomeRunningFunction0 (void)
	dummy function making a test to determine the outcome of substate EG_FSM_SUBSTATE_RUNNING_0 More...

static bool	EG_SomeRunningFunction1 (void)
	dummy function making a test to determine the outcome of substate EG_FSM_SUBSTATE_RUNNING_1 More...

static bool	EG_SomeRunningFunction2 (void)
	dummy function making a test to determine the outcome of substate EG_FSM_SUBSTATE_RUNNING_2 More...

static EG_FSM_STATES_e	EG_ProcessInitializationState (EG_STATE_s *pEgState)
	Processes the initialization state. More...

static EG_FSM_STATES_e	EG_ProcessRunningState (EG_STATE_s *pEgState)
	Processes the running state. More...

static STD_RETURN_TYPE_e	EG_RunStateMachine (EG_STATE_s *pEgState)
	Defines the state transitions. More...

STD_RETURN_TYPE_e	EG_Trigger (EG_STATE_s *pEgState)
	tick function, call this to advance the state machine More...

Variables
EG_STATE_s	eg_state

Detailed Description

Implementation of some driver that needs a state machine.

Copyright: © 2010 - 2022, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

″This product uses parts of foxBMS®″
″This product includes parts of foxBMS®″
″This product is derived from foxBMS®″

Author: foxBMS Team

Date: 2020-10-29 (date of creation)

Updated: 2022-05-30 (date of last update)

Version: v1.3.0

Prefix: EG

Definition in file state-machine.c.

Macro Definition Documentation

◆ EG_FSM_LONG_TIME

#define EG_FSM_LONG_TIME (10u)

statemachine long time definition in EG_Trigger calls until next state/substate is processed

Definition at line 75 of file state-machine.c.

◆ EG_FSM_MEDIUM_TIME

#define EG_FSM_MEDIUM_TIME (5u)

statemachine medium time definition in EG_Trigger calls until next state/substate is processed

Definition at line 69 of file state-machine.c.

◆ EG_FSM_SHORT_TIME

#define EG_FSM_SHORT_TIME (1u)

statemachine short time definition in EG_Trigger calls until next state is processed

Definition at line 63 of file state-machine.c.

Enumeration Type Documentation

◆ EG_CHECK_MULTIPLE_CALLS_e

enum EG_CHECK_MULTIPLE_CALLS_e

Symbolic names to check for multiple calls of EG_Trigger

Enumerator
EG_MULTIPLE_CALLS_NO	no multiple calls, OK
EG_MULTIPLE_CALLS_YES	multiple calls, not OK

Definition at line 78 of file state-machine.c.

Function Documentation

◆ EG_CheckMultipleCalls()

static EG_CHECK_MULTIPLE_CALLS_e EG_CheckMultipleCalls ( EG_STATE_s * pEgState )

static

check for multiple calls of state machine trigger function

The trigger function is not reentrant, which means it cannot be called multiple times. This functions increments the triggerEntry counter once and must be called each time the trigger function is called. If triggerEntry is greater than one, there were multiple calls. For this function to work, triggerEntry must be decremented each time the trigger function is called, even if no processing do because the timer is non-zero.

Parameters

pEgState state of the fake state machine

Returns: EG_MULTIPLE_CALLS_YES if there were multiple calls, EG_MULTIPLE_CALLS_NO otherwise

Definition at line 212 of file state-machine.c.

Here is the call graph for this function:

◆ EG_ProcessInitializationState()

static EG_FSM_STATES_e EG_ProcessInitializationState ( EG_STATE_s * pEgState )

static

Processes the initialization state.

Parameters

pEgState state of the example state machine

Returns: Always STD_OK

Definition at line 292 of file state-machine.c.

Here is the call graph for this function:

◆ EG_ProcessRunningState()

static EG_FSM_STATES_e EG_ProcessRunningState ( EG_STATE_s * pEgState )

static

Processes the running state.

Parameters

pEgState state of the example state machine

Returns: Always STD_OK

Definition at line 335 of file state-machine.c.

Here is the call graph for this function:

◆ EG_RunStateMachine()

static STD_RETURN_TYPE_e EG_RunStateMachine ( EG_STATE_s * pEgState )

static

Defines the state transitions.

This function contains the implementation of the state machine, i.e., the sequence of states and substates. It is called by the trigger function every time the state machine timer has a non-zero value.

Parameters

pEgState state of the example state machine

Returns: Always STD_OK

Definition at line 378 of file state-machine.c.

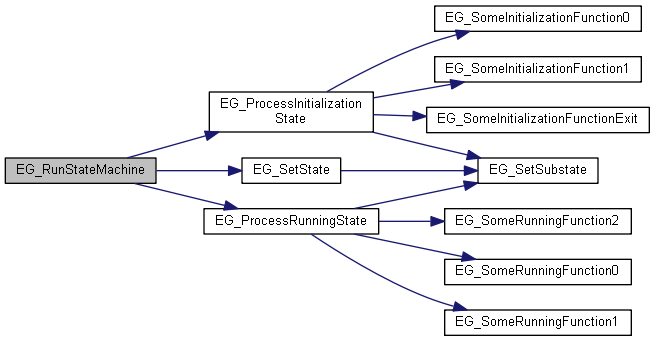

Here is the call graph for this function:

◆ EG_SetState()

static void EG_SetState	(	EG_STATE_s *	pEgState,
		EG_FSM_STATES_e	nextState,
		EG_FSM_SUBSTATES_e	nextSubstate,
		uint16_t	idleTime
	)

static

Sets the next state, the next substate and the timer value of the state variable.

Parameters

pEgState	state of the example state machine
nextState	state to be transferred into
nextSubstate	substate to be transferred into
idleTime	wait time for the state machine

Definition at line 225 of file state-machine.c.

Here is the call graph for this function:

◆ EG_SetSubstate()

static void EG_SetSubstate	(	EG_STATE_s *	pEgState,
		EG_FSM_SUBSTATES_e	nextSubstate,
		uint16_t	idleTime
	)

static

Sets the next substate and the timer value of the state variable.

Parameters

pEgState	state of the example state machine
nextSubstate	substate to be transferred into
idleTime	wait time for the state machine

Definition at line 260 of file state-machine.c.

◆ EG_SomeInitializationFunction0()

static bool EG_SomeInitializationFunction0 ( void )

static

dummy function for initialization substate EG_FSM_SUBSTATE_INITIALIZATION_0

Returns: returns always true

Definition at line 268 of file state-machine.c.

◆ EG_SomeInitializationFunction1()

static bool EG_SomeInitializationFunction1 ( void )

static

dummy function for initialization substate EG_FSM_SUBSTATE_INITIALIZATION_1

Returns: returns always true

Definition at line 272 of file state-machine.c.

◆ EG_SomeInitializationFunctionExit()

static bool EG_SomeInitializationFunctionExit ( void )

static

dummy function to check if the initialization step of the state machine was successful (EG_FSM_SUBSTATE_INITIALIZATION_1)

Returns: returns always true

Definition at line 276 of file state-machine.c.

◆ EG_SomeRunningFunction0()

static bool EG_SomeRunningFunction0 ( void )

static

dummy function making a test to determine the outcome of substate EG_FSM_SUBSTATE_RUNNING_0

Returns: returns always true

Definition at line 280 of file state-machine.c.

◆ EG_SomeRunningFunction1()

static bool EG_SomeRunningFunction1 ( void )

static

dummy function making a test to determine the outcome of substate EG_FSM_SUBSTATE_RUNNING_1

Returns: returns always true

Definition at line 284 of file state-machine.c.

◆ EG_SomeRunningFunction2()

static bool EG_SomeRunningFunction2 ( void )

static

dummy function making a test to determine the outcome of substate EG_FSM_SUBSTATE_RUNNING_2

Returns: returns always true

Definition at line 288 of file state-machine.c.

◆ EG_Trigger()

STD_RETURN_TYPE_e EG_Trigger ( EG_STATE_s * pEgState )

tick function, call this to advance the state machine

Parameters

pEgState current state of the state machine

Returns: returns always STD_OK

Definition at line 436 of file state-machine.c.

Here is the call graph for this function:

Variable Documentation

◆ eg_state

EG_STATE_s eg_state

Initial value:

= {
    .timer            = 0,
    .triggerEntry     = 0,
    .nextState        = EG_FSM_STATE_HAS_NEVER_RUN,
    .currentState     = EG_FSM_STATE_HAS_NEVER_RUN,
    .previousState    = EG_FSM_STATE_HAS_NEVER_RUN,
    .nextSubstate     = EG_FSM_SUBSTATE_DUMMY,
    .currentSubstate  = EG_FSM_SUBSTATE_DUMMY,
    .previousSubstate = EG_FSM_SUBSTATE_DUMMY,
    .information.r0   = 0,
    .information.r1   = 0,
    .information.r2   = 0,
}

local instance of the driver-state

Definition at line 88 of file state-machine.c.
