The foxBMS Unit Tests API Documentation
|
Header for the configuration for the driver for the interlock. More...

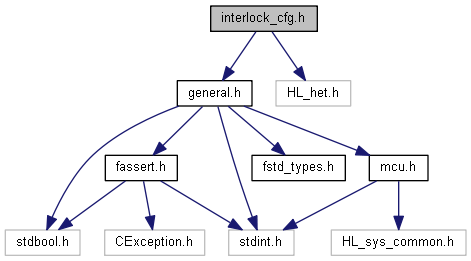

Go to the source code of this file.
Macros | |
#define | ILCK_IO_REG_DIR (hetREG1->DIR) |
#define | ILCK_IO_REG_PORT (hetREG1) |
#define | ILCK_INTERLOCK_CONTROL_PIN_IL_HS_ENABLE (30u) |
#define | ILCK_INTERLOCK_FEEDBACK_PIN_IL_STATE (29u) |
#define | ILCK_ADC_INPUT_HIGH_SIDE_VOLTAGE_SENSE (2u) |
#define | ILCK_ADC_INPUT_LOW_SIDE_VOLTAGE_SENSE (3u) |
#define | ILCK_ADC_INPUT_HIGH_SIDE_CURRENT_SENSE (4u) |
#define | ILCK_ADC_INPUT_LOW_SIDE_CURRENT_SENSE (5u) |
#define | ILCK_VOLTAGE_DIVIDER_FACTOR ((5.6f + 3.9f) / 3.9f) |
#define | ILCK_FACTOR_IL_HS_CS_1_ohm (80.0f / 2049.0f) |
#define | ILCK_FACTOR_IL_LS_CS_1_ohm (0.025f) |
#define | ILCK_STATEMACH_SHORTTIME (1u) |
ILCK statemachine short time definition in ILCK_Trigger() calls until next state/substate is processed. More... | |
Enumerations | |
enum | ILCK_ELECTRICAL_STATE_TYPE_e { ILCK_SWITCH_OFF , ILCK_SWITCH_ON , ILCK_SWITCH_UNDEF } |
Header for the configuration for the driver for the interlock.
SPDX-License-Identifier: BSD-3-Clause
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:
Definition in file interlock_cfg.h.
#define ILCK_ADC_INPUT_HIGH_SIDE_CURRENT_SENSE (4u) |
High-side current sense signal connected to ADC input 4 (IL_HS_CS)
Definition at line 82 of file interlock_cfg.h.
#define ILCK_ADC_INPUT_HIGH_SIDE_VOLTAGE_SENSE (2u) |
High-side voltage sense signal connected to ADC input 2 (IL_HS_VS)
Definition at line 78 of file interlock_cfg.h.
#define ILCK_ADC_INPUT_LOW_SIDE_CURRENT_SENSE (5u) |
Low-side current sense signal connected to ADC input 5 (IL_LS_CS)
Definition at line 84 of file interlock_cfg.h.
#define ILCK_ADC_INPUT_LOW_SIDE_VOLTAGE_SENSE (3u) |
Low-side voltage sense signal connected to ADC input 3 (IL_LS_VS)
Definition at line 80 of file interlock_cfg.h.
#define ILCK_FACTOR_IL_HS_CS_1_ohm (80.0f / 2049.0f) |
Conversion factor for interlock current IL_HS_CS 2k49 ohm is the resistance through which sense current flows 80 is the (output current / sense current) ratio of high-side power switch TPS2H000-Q1 data sheet SLVSD72D - DECEMBER 2015 - REVISED DECEMBER 2019 p.8
Definition at line 96 of file interlock_cfg.h.
#define ILCK_FACTOR_IL_LS_CS_1_ohm (0.025f) |
Linear conversion factor for low-side interlock current measurement (IL_LS_CS). Measurement performed via 2 ohm shunt with a gain of 20V/V
Definition at line 100 of file interlock_cfg.h.
#define ILCK_INTERLOCK_CONTROL_PIN_IL_HS_ENABLE (30u) |
Enable pin for diagnostic power supply
Definition at line 71 of file interlock_cfg.h.
#define ILCK_INTERLOCK_FEEDBACK_PIN_IL_STATE (29u) |
Defines the pin where interlock feedback pin is connected to the mcu
Definition at line 74 of file interlock_cfg.h.
#define ILCK_IO_REG_DIR (hetREG1->DIR) |
IO register to which the interlock is connected
Definition at line 66 of file interlock_cfg.h.
#define ILCK_IO_REG_PORT (hetREG1) |
IO port for interlock related pins
Definition at line 68 of file interlock_cfg.h.
#define ILCK_STATEMACH_SHORTTIME (1u) |
ILCK statemachine short time definition in ILCK_Trigger() calls until next state/substate is processed.
Definition at line 106 of file interlock_cfg.h.
#define ILCK_VOLTAGE_DIVIDER_FACTOR ((5.6f + 3.9f) / 3.9f) |
Factor of resistor divider used for measuring the low- and high-side interlock voltages. Used resistor values are 5k6 ohm and 3k9 ohm.
Definition at line 88 of file interlock_cfg.h.
Symbolic names for contactors' possible states
Enumerator | |
---|---|
ILCK_SWITCH_OFF | Contactor off --> Contactor is open |
ILCK_SWITCH_ON | Contactor on --> Contactor is closed |
ILCK_SWITCH_UNDEF | Contactor undefined --> Contactor state not known |
Definition at line 109 of file interlock_cfg.h.
