Driver for the MAX17841B ASCI and MAX1785x monitoring chip. More...

#include "mxm_1785x.h"
#include "afe_plausibility.h"
#include "database.h"
#include "diag.h"
#include "mxm_1785x_tools.h"
#include "mxm_battery_management.h"
#include "mxm_registry.h"
#include "os.h"
#include "tsi.h"

Include dependency graph for mxm_1785x.c:

Go to the source code of this file.

Macros
#define	MXM_OFFSET_CELL_1 (0u)

#define	MXM_OFFSET_CELL_2 (1u)

#define	MXM_OFFSET_CELL_3 (2u)

#define	MXM_OFFSET_CELL_4 (3u)

#define	MXM_OFFSET_CELL_5 (4u)

#define	MXM_OFFSET_CELL_6 (5u)

#define	MXM_OFFSET_CELL_7 (6u)

#define	MXM_OFFSET_CELL_8 (7u)

#define	MXM_OFFSET_CELL_9 (8u)

#define	MXM_OFFSET_CELL_10 (9u)

#define	MXM_OFFSET_CELL_11 (10u)

#define	MXM_OFFSET_CELL_12 (11u)

#define	MXM_OFFSET_CELL_13 (12u)

#define	MXM_OFFSET_CELL_14 (13u)

#define	MXM_OFFSET_AUX0 (0u)

#define	MXM_OFFSET_AUX2 (2u)

#define	MXM_OFFSET_AUX3 (3u)

#define	MXM_OFFSET_BLOCK (0u)

#define	MXM_MAXIMUM_ERROR_COUNT (10u)

#define	MXM_TIMEOUT_RESET_ERROR_COUNTER_ms (500)

#define	MXM_TEST_BUFFER_MAXIMUM_LENGTH (120u)

#define	MXM_REF_VAA_mV (3300u)
	VAA reference voltage (3.3V) More...

Functions
static void	MXM_GetDataFrom5XStateMachine (MXM_MONITORING_INSTANCE_s *pInstance)
	Retrieves data from lower statemachine and writes it to the rx buffer. More...

static void	MXM_ParseVoltageLineReadall (const uint8_t const kpkVoltRxBuffer, uint16_t voltRxBufferLength, uint8_t measurementOffset, MXM_CONVERSION_TYPE_e conversionType, uint16_t pVoltagesTarget, MXM_MEASURE_TYPE_e measurementType, uint32_t fullScaleReference_mV)
	Parse voltage values from a READALL receive buffer into an array. More...

static STD_RETURN_TYPE_e	MXM_ParseVoltageReadall (const uint8_t const kpkVoltageRxBuffer, uint16_t voltageRxBufferLength, MXM_DATA_STORAGE_s datastorage, MXM_CONVERSION_TYPE_e conversionType)
	Parse a RX buffer containing voltage values. More...

static STD_RETURN_TYPE_e must_check_return	MXM_ParseVoltageReadallTest (MXM_MONITORING_INSTANCE_s *pInstance)
	Test the MXM_ParseVoltageReadall()-function. More...

void	MXM_CheckIfErrorCounterCanBeReset (MXM_MONITORING_INSTANCE_s *pInstance)
	Function that checks if the error counter can be reset. More...

void	MXM_ErrorHandlerReset (MXM_MONITORING_INSTANCE_s *pInstance, bool immediateReset)
	This error handler is used as a last resort and tries a reset of the complete driver. More...

void	MXM_HandleStateWriteall (MXM_MONITORING_INSTANCE_s *pInstance, MXM_STATEMACHINE_OPERATION_STATES_e nextState)
	Handle the statemachine-transactions for a WRITEALL. More...

bool must_check_return	MXM_HandleStateReadall (MXM_MONITORING_INSTANCE_s *pInstance, MXM_REG_NAME_e registerName, MXM_STATEMACHINE_OPERATION_STATES_e nextState)
	Handle the statemachine-transactions for a READALL. More...

STD_RETURN_TYPE_e	MXM_ProcessOpenWire (const MXM_MONITORING_INSTANCE_s *const kpkInstance)
	Processes the retrieved information on openwire. More...

STD_RETURN_TYPE_e	MXM_ConstructBalancingBuffer (MXM_BALANCING_STATE_s *pBalancingInstance)
	Fill the balancing datastructure. More...

STD_RETURN_TYPE_e	MXM_ParseVoltagesIntoDB (const MXM_MONITORING_INSTANCE_s *const kpkInstance)
	Copies measured voltage data into the database. More...

void	MXM_InitializeStateStruct (MXM_BALANCING_STATE_s pBalancingInstance, MXM_MONITORING_INSTANCE_s pMonitoringInstance)
	Initializes the state structs with default values. More...

STD_RETURN_TYPE_e	MXM_PreInitSelfCheck (MXM_MONITORING_INSTANCE_s *pState)
	Execute all preinit selfchecks. More...

MXM_MONITORING_STATE_e must_check_return	MXM_MonGetVoltages (MXM_MONITORING_INSTANCE_s *pState, MXM_REG_NAME_e regAddress)
	Encapsulation for reading voltages from a register. More...

void	MXM_StateMachine (MXM_MONITORING_INSTANCE_s *pInstance)
	Main state-machine implementation. More...

STD_RETURN_TYPE_e	TEST_MXM_ParseVoltageReadallTest (MXM_MONITORING_INSTANCE_s *pInstance)

STD_RETURN_TYPE_e	TEST_MXM_ParseVoltagesIntoDB (MXM_MONITORING_INSTANCE_s *pInstance)

STD_RETURN_TYPE_e	TEST_MXM_ParseVoltageReadall (uint8_t voltRxBuffer, uint16_t voltRxBufferLength, MXM_DATA_STORAGE_s datastorage, MXM_CONVERSION_TYPE_e conversionType)

Variables
static const AFE_PLAUSIBILITY_VALUES_s	mxm_plausibleCellVoltages

Detailed Description

Driver for the MAX17841B ASCI and MAX1785x monitoring chip.

Copyright: © 2010 - 2022, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

″This product uses parts of foxBMS®″
″This product includes parts of foxBMS®″
″This product is derived from foxBMS®″

Author: foxBMS Team

Date: 2019-01-15 (date of creation)

Updated: 2022-05-30 (date of last update)

Version: v1.3.0

Prefix: MXM

This file contains the main-state-machine that drives the monitoring ICs of the MAX1785x family by Maxim Integrated.

Definition in file mxm_1785x.c.

Macro Definition Documentation

◆ MXM_MAXIMUM_ERROR_COUNT

#define MXM_MAXIMUM_ERROR_COUNT (10u)

maximum number of errors that may occur before the next error triggers a reset

Definition at line 92 of file mxm_1785x.c.

◆ MXM_OFFSET_AUX0

#define MXM_OFFSET_AUX0 (0u)

storage offset for AUX0

Definition at line 86 of file mxm_1785x.c.

◆ MXM_OFFSET_AUX2

#define MXM_OFFSET_AUX2 (2u)

storage offset for AUX2

Definition at line 87 of file mxm_1785x.c.

◆ MXM_OFFSET_AUX3

#define MXM_OFFSET_AUX3 (3u)

storage offset for AUX3

Definition at line 88 of file mxm_1785x.c.

◆ MXM_OFFSET_BLOCK

#define MXM_OFFSET_BLOCK (0u)

storage offset for block voltage

Definition at line 89 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_1

#define MXM_OFFSET_CELL_1 (0u)

storage offset for cell 1

Definition at line 72 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_10

#define MXM_OFFSET_CELL_10 (9u)

storage offset for cell 10

Definition at line 81 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_11

#define MXM_OFFSET_CELL_11 (10u)

storage offset for cell 11

Definition at line 82 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_12

#define MXM_OFFSET_CELL_12 (11u)

storage offset for cell 12

Definition at line 83 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_13

#define MXM_OFFSET_CELL_13 (12u)

storage offset for cell 13

Definition at line 84 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_14

#define MXM_OFFSET_CELL_14 (13u)

storage offset for cell 14

Definition at line 85 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_2

#define MXM_OFFSET_CELL_2 (1u)

storage offset for cell 2

Definition at line 73 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_3

#define MXM_OFFSET_CELL_3 (2u)

storage offset for cell 3

Definition at line 74 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_4

#define MXM_OFFSET_CELL_4 (3u)

storage offset for cell 4

Definition at line 75 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_5

#define MXM_OFFSET_CELL_5 (4u)

storage offset for cell 5

Definition at line 76 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_6

#define MXM_OFFSET_CELL_6 (5u)

storage offset for cell 6

Definition at line 77 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_7

#define MXM_OFFSET_CELL_7 (6u)

storage offset for cell 7

Definition at line 78 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_8

#define MXM_OFFSET_CELL_8 (7u)

storage offset for cell 8

Definition at line 79 of file mxm_1785x.c.

◆ MXM_OFFSET_CELL_9

#define MXM_OFFSET_CELL_9 (8u)

storage offset for cell 9

Definition at line 80 of file mxm_1785x.c.

◆ MXM_REF_VAA_mV

#define MXM_REF_VAA_mV (3300u)

VAA reference voltage (3.3V)

Definition at line 108 of file mxm_1785x.c.

◆ MXM_TEST_BUFFER_MAXIMUM_LENGTH

#define MXM_TEST_BUFFER_MAXIMUM_LENGTH (120u)

maximum length of a test buffer

Definition at line 98 of file mxm_1785x.c.

◆ MXM_TIMEOUT_RESET_ERROR_COUNTER_ms

#define MXM_TIMEOUT_RESET_ERROR_COUNTER_ms (500)

timeout after which the error counter will be reset

Definition at line 95 of file mxm_1785x.c.

Function Documentation

◆ MXM_CheckIfErrorCounterCanBeReset()

void MXM_CheckIfErrorCounterCanBeReset ( MXM_MONITORING_INSTANCE_s * pInstance )

Function that checks if the error counter can be reset.

Parameters

[in,out] pInstance pointer to the state struct

Definition at line 888 of file mxm_1785x.c.

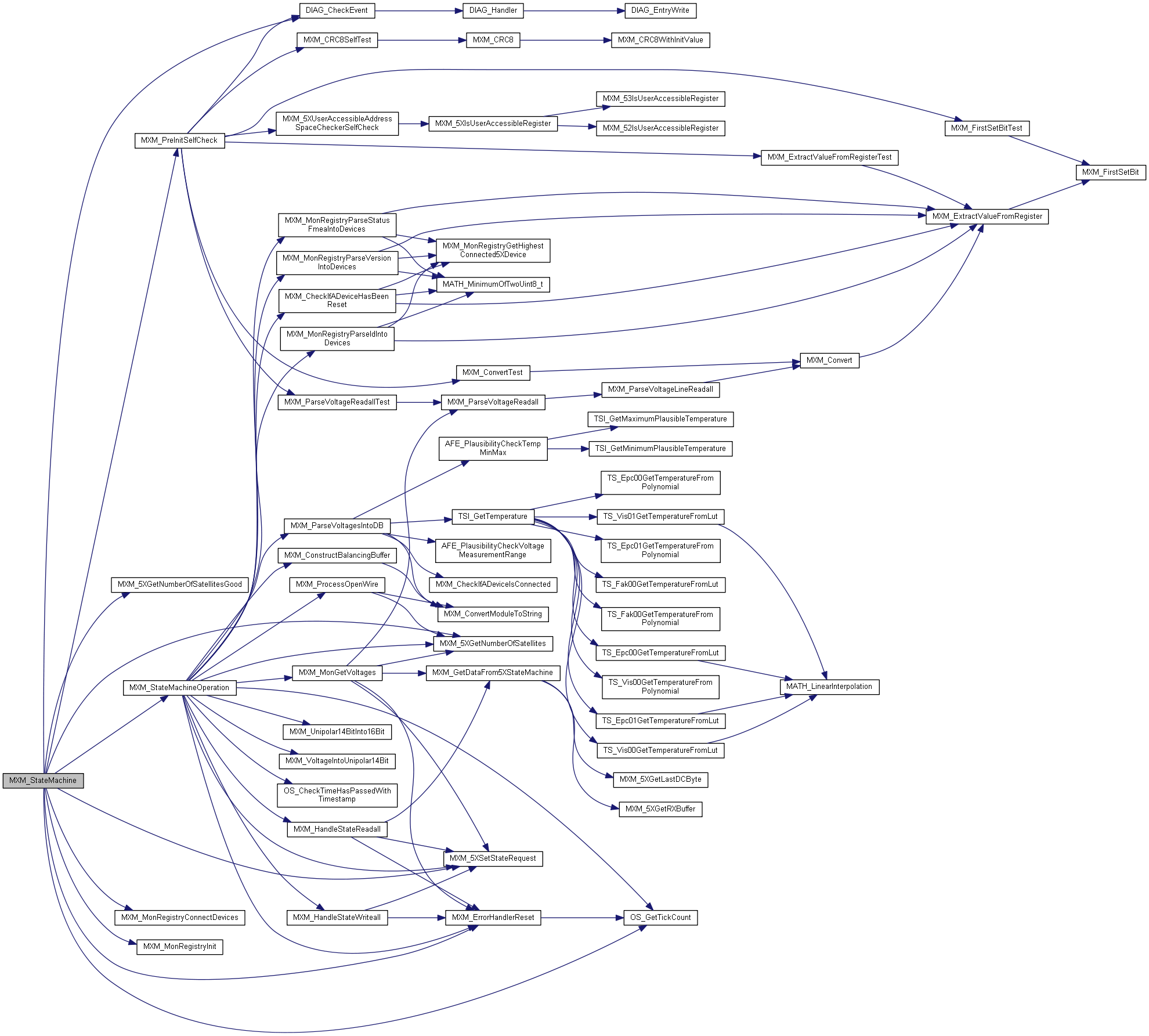

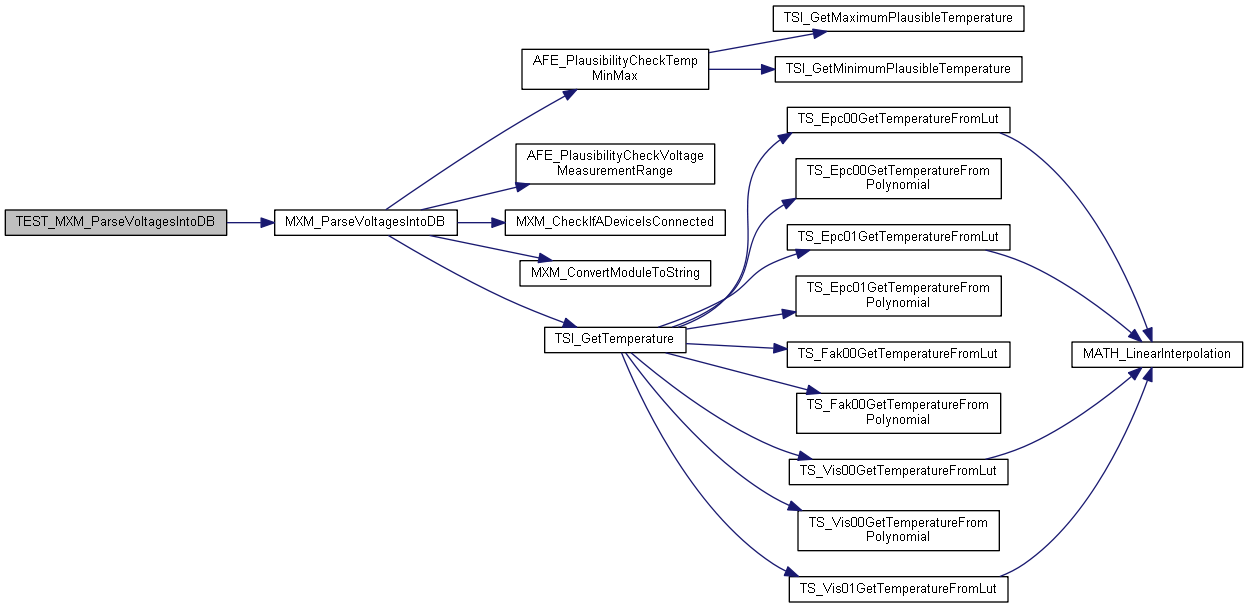

Here is the call graph for this function:

◆ MXM_ConstructBalancingBuffer()

STD_RETURN_TYPE_e MXM_ConstructBalancingBuffer ( MXM_BALANCING_STATE_s * pBalancingInstance )

Fill the balancing datastructure.

This function fills the data-structure that describes which balancing channels of the monitoring ICs should be activated.

Parameters

[in,out] pBalancingInstance pointer to the balancing state

Returns: STD_NOT_OK in case of invalid access

Definition at line 1016 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_ErrorHandlerReset()

void MXM_ErrorHandlerReset	(	MXM_MONITORING_INSTANCE_s *	pInstance,
		bool	immediateReset
	)

This error handler is used as a last resort and tries a reset of the complete driver.

A reset is done by setting the relevant flag in the state struct and waiting for the reset to occur (done by AFE on next tick). Before this last resort measure is taken, a error counter has to be counted up.

Parameters

[in,out]	pInstance	pointer to the state struct in order to write the reset flag
[in]	immediateReset	if set to true, a reset will be requested independently of the error counter

Definition at line 901 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_GetDataFrom5XStateMachine()

static void MXM_GetDataFrom5XStateMachine ( MXM_MONITORING_INSTANCE_s * pInstance )

static

Retrieves data from lower statemachine and writes it to the rx buffer.

Definition at line 191 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_HandleStateReadall()

bool must_check_return MXM_HandleStateReadall	(	MXM_MONITORING_INSTANCE_s *	pInstance,
		MXM_REG_NAME_e	registerName,
		MXM_STATEMACHINE_OPERATION_STATES_e	nextState
	)

Handle the statemachine-transactions for a READALL.

Call this function and pass on the state-variable, the register to be read and the next state. The function will handle the communication with the lower state-machine and will transition into the next state, if the command has been sent successfully. Moreover it will return true when transitioning. The return value has to be checked and used to execute additional code if necessary.

Parameters

[in,out]	pInstance	pointer to instance of the mxm monitoring state-machine
[in]	registerName	register that should be read
[in]	nextState	state that should be entered upon successful completion

Returns: true when the state has been handled, false otherwise, use this to execute additional code when the message has been read.

Definition at line 940 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_HandleStateWriteall()

void MXM_HandleStateWriteall	(	MXM_MONITORING_INSTANCE_s *	pInstance,
		MXM_STATEMACHINE_OPERATION_STATES_e	nextState
	)

Handle the statemachine-transactions for a WRITEALL.

Before calling this function, update the command buffer of the state-variable. Then call this function and pass on the state-variable and the next state. The function will handle the communication with the lower state-machine and will transition into the next state, if the command has been sent successfully.

Parameters

[in,out]	pInstance	pointer to instance of the mxm monitoring state-machine
[in]	nextState	state that should be entered upon successful completion

Definition at line 912 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_InitializeStateStruct()

void MXM_InitializeStateStruct	(	MXM_BALANCING_STATE_s *	pBalancingInstance,
		MXM_MONITORING_INSTANCE_s *	pMonitoringInstance
	)

Initializes the state structs with default values.

This function is called through the startup of the driver in order to ensure proper default values.

Parameters

[out]	pBalancingInstance	instance of the balancing state struct that shall be initialized
[out]	pMonitoringInstance	instance of the monitoring state struct that shall be initialized

Definition at line 1164 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_MonGetVoltages()

MXM_MONITORING_STATE_e must_check_return MXM_MonGetVoltages	(	MXM_MONITORING_INSTANCE_s *	pState,
		MXM_REG_NAME_e	regAddress
	)

Encapsulation for reading voltages from a register.

This function encapsulates the request of state-changes and following conversion for the reading of an arbitrary measurement voltage of the daisy-chain. Its parameters are a variable for tracking the state of the underlying state-machines and the register address that has to be queried. It returns whether the action has been successful or not. In order to obtain all cell voltages this function has to be called for every relevant register address.

Parameters

[in,out]	pState	pointer to the state-machine struct
[in]	regAddress	register address that shall be queried

Returns

current state of the action:

MXM_MON_STATE_PASS upon completion
MXM_MON_STATE_PENDING as long as the action is ongoing
MXM_MON_STATE_FAIL if the function failed and could not recover on its own

Definition at line 1275 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_ParseVoltageLineReadall()

static void MXM_ParseVoltageLineReadall	(	const uint8_t *const	kpkVoltRxBuffer,
		uint16_t	voltRxBufferLength,
		uint8_t	measurementOffset,
		MXM_CONVERSION_TYPE_e	conversionType,
		uint16_t *	pVoltagesTarget,
		MXM_MEASURE_TYPE_e	measurementType,
		uint32_t	fullScaleReference_mV
	)

static

Parse voltage values from a READALL receive buffer into an array.

This function expects a preprocessed RX buffer with an answer to a READALL command. It will parse the data bytes from this message into an array structured like mxm_local_cellvoltages. The offset of the measured cell has to be defined. For example cell 1 has an offset of 0 and cell 4 has an offset of 3. The offset for the READALL command is always defined in reference to module 0.

If is_temperature_measurement is set to true, the function expects an auxiliary measurement (e.g. temperatures).

Parameters

[in]	kpkVoltRxBuffer	array-pointer to the RX buffer
[in]	voltRxBufferLength	length of the RX buffer
[in]	measurementOffset	offset of the data in the cell voltage array (target)
[in]	conversionType	type of conversion that has been used for the measured data
[out]	pVoltagesTarget	array-pointer to the cell voltages array
[in]	measurementType	whether the measurement is temperature or cell
[in]	fullScaleReference_mV	reference voltage of full scale

Definition at line 199 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_ParseVoltageReadall()

static STD_RETURN_TYPE_e MXM_ParseVoltageReadall	(	const uint8_t *const	kpkVoltageRxBuffer,
		uint16_t	voltageRxBufferLength,
		MXM_DATA_STORAGE_s *	datastorage,
		MXM_CONVERSION_TYPE_e	conversionType
	)

static

Parse a RX buffer containing voltage values.

This function parses a RX buffer containing the answer to a READALL command. It will check whether the message contains a READALL command and whether a supported register has been queried. Depending on the queried register, it will pass the proper parameters to MXM_ParseVoltageLineReadall(). The contained data from this message will be parsed into a struct structured like MXM_MONITORING_INSTANCE_s::localVoltages.

Parameters

[in]	kpkVoltageRxBuffer	array-pointer to the RX buffer
[in]	voltageRxBufferLength	length of the RX buffer
[out]	datastorage	contains all measured voltages for local consumption in the module
[in]	conversionType	type of conversion that has been used for the measured data

Returns: STD_NOT_OK in the case that the RX buffer does not contain a valid message or the conversion-type is unknown, otherwise STD_OK

Definition at line 270 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_ParseVoltageReadallTest()

static STD_RETURN_TYPE_e must_check_return MXM_ParseVoltageReadallTest ( MXM_MONITORING_INSTANCE_s * pInstance )

static

Test the MXM_ParseVoltageReadall()-function.

Test the function MXM_ParseVoltageReadall() by passing predefined RX buffer to it and checking the outcome. This function writes to the variable MXM_MONITORING_INSTANCE_s::localVoltages and nulls it completely after execution. It is intended as a self-check that can be performed during startup of the driver.

Returns: STD_OK if the self-check has been performed successfully, otherwise STD_NOT_OK

Definition at line 485 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_ParseVoltagesIntoDB()

STD_RETURN_TYPE_e MXM_ParseVoltagesIntoDB ( const MXM_MONITORING_INSTANCE_s *const kpkInstance )

Copies measured voltage data into the database.

This function copies the acquired voltage data from MXM_MONITORING_INSTANCE_s::localVoltages into the database-struct mxm_tableCellVoltages and copies this struct into the database. This action is required due to different data layouts. This driver always stores its cell-voltages in an array with 14*32 = 448 cells in order to reduce the amount of different configurations and variants.

This function maps these values into the database-struct which scales with the number of connected cells and monitoring ICs.

Parameters

[in] kpkInstance pointer to the MXM_MONITORING_INSTANCE_s struct

Returns: STD_OK if the action was successful or STD_NOT_OK otherwise

< invalid configuration!

Definition at line 1075 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_PreInitSelfCheck()

STD_RETURN_TYPE_e MXM_PreInitSelfCheck ( MXM_MONITORING_INSTANCE_s * pState )

Execute all preinit selfchecks.

Executes the following self-checks:

These self-checks do not need an initialized daisy-chain and can therefore be executed at startup of the state-machine.

After execution of each test, the return value is stored in the supplied state-struct. The function returns whether the self-check has successfully passed.

Parameters

[in,out] pState pointer to the state-struct, will write status into

Returns: STD_OK on success, STD_NOT_OK on failure, return value has to be used

Definition at line 1237 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_ProcessOpenWire()

STD_RETURN_TYPE_e MXM_ProcessOpenWire ( const MXM_MONITORING_INSTANCE_s *const kpkInstance )

Processes the retrieved information on openwire.

Parses through a retrieved RX buffer and writes into the database.

Parameters

[in,out] kpkInstance pointer to instance of the Maxim monitoring state-machine

Returns: returns the return value of the database write function DATA_Write1DataBlock()

Definition at line 971 of file mxm_1785x.c.

Here is the call graph for this function:

◆ MXM_StateMachine()

void MXM_StateMachine ( MXM_MONITORING_INSTANCE_s * pInstance )

Main state-machine implementation.

This state-machine handles the main state of the driver. It runs the self-check, initializes communication and then transitions into the operation state in which it executes the state-machine described in MXM_StateMachineOperation().

Parameters

[in,out] pInstance used as both input and output (stores state-information, requests and intermediate values)

Definition at line 1314 of file mxm_1785x.c.

Here is the call graph for this function:

◆ TEST_MXM_ParseVoltageReadall()

STD_RETURN_TYPE_e TEST_MXM_ParseVoltageReadall	(	uint8_t *	voltRxBuffer,
		uint16_t	voltRxBufferLength,
		MXM_DATA_STORAGE_s *	datastorage,
		MXM_CONVERSION_TYPE_e	conversionType
	)

Definition at line 1429 of file mxm_1785x.c.

Here is the call graph for this function:

◆ TEST_MXM_ParseVoltageReadallTest()

STD_RETURN_TYPE_e TEST_MXM_ParseVoltageReadallTest ( MXM_MONITORING_INSTANCE_s * pInstance )

Definition at line 1423 of file mxm_1785x.c.

Here is the call graph for this function:

◆ TEST_MXM_ParseVoltagesIntoDB()

STD_RETURN_TYPE_e TEST_MXM_ParseVoltagesIntoDB ( MXM_MONITORING_INSTANCE_s * pInstance )

Definition at line 1426 of file mxm_1785x.c.

Here is the call graph for this function:

Variable Documentation

◆ mxm_plausibleCellVoltages

const AFE_PLAUSIBILITY_VALUES_s mxm_plausibleCellVoltages

static

Initial value:

= {
    .maximumPlausibleVoltage_mV = 5000,
    .minimumPlausibleVoltage_mV = -2500,
}

local definition of plausible cell voltage values

Definition at line 101 of file mxm_1785x.c.

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ MXM_MAXIMUM_ERROR_COUNT

◆ MXM_OFFSET_AUX0

◆ MXM_OFFSET_AUX2

◆ MXM_OFFSET_AUX3

◆ MXM_OFFSET_BLOCK

◆ MXM_OFFSET_CELL_1

◆ MXM_OFFSET_CELL_10

◆ MXM_OFFSET_CELL_11

◆ MXM_OFFSET_CELL_12

◆ MXM_OFFSET_CELL_13

◆ MXM_OFFSET_CELL_14

◆ MXM_OFFSET_CELL_2

◆ MXM_OFFSET_CELL_3

◆ MXM_OFFSET_CELL_4

◆ MXM_OFFSET_CELL_5

◆ MXM_OFFSET_CELL_6

◆ MXM_OFFSET_CELL_7

◆ MXM_OFFSET_CELL_8

◆ MXM_OFFSET_CELL_9

◆ MXM_REF_VAA_mV

◆ MXM_TEST_BUFFER_MAXIMUM_LENGTH

◆ MXM_TIMEOUT_RESET_ERROR_COUNTER_ms

Function Documentation

◆ MXM_CheckIfErrorCounterCanBeReset()

◆ MXM_ConstructBalancingBuffer()

◆ MXM_ErrorHandlerReset()

◆ MXM_GetDataFrom5XStateMachine()

◆ MXM_HandleStateReadall()

◆ MXM_HandleStateWriteall()

◆ MXM_InitializeStateStruct()

◆ MXM_MonGetVoltages()

◆ MXM_ParseVoltageLineReadall()

◆ MXM_ParseVoltageReadall()

◆ MXM_ParseVoltageReadallTest()

◆ MXM_ParseVoltagesIntoDB()

◆ MXM_PreInitSelfCheck()

◆ MXM_ProcessOpenWire()

◆ MXM_StateMachine()

◆ TEST_MXM_ParseVoltageReadall()

◆ TEST_MXM_ParseVoltageReadallTest()

◆ TEST_MXM_ParseVoltagesIntoDB()

Variable Documentation

◆ mxm_plausibleCellVoltages
