4.1.2. Master TMS570 v1.1.1
Note
The changelog for this release is found at v1.1.1.

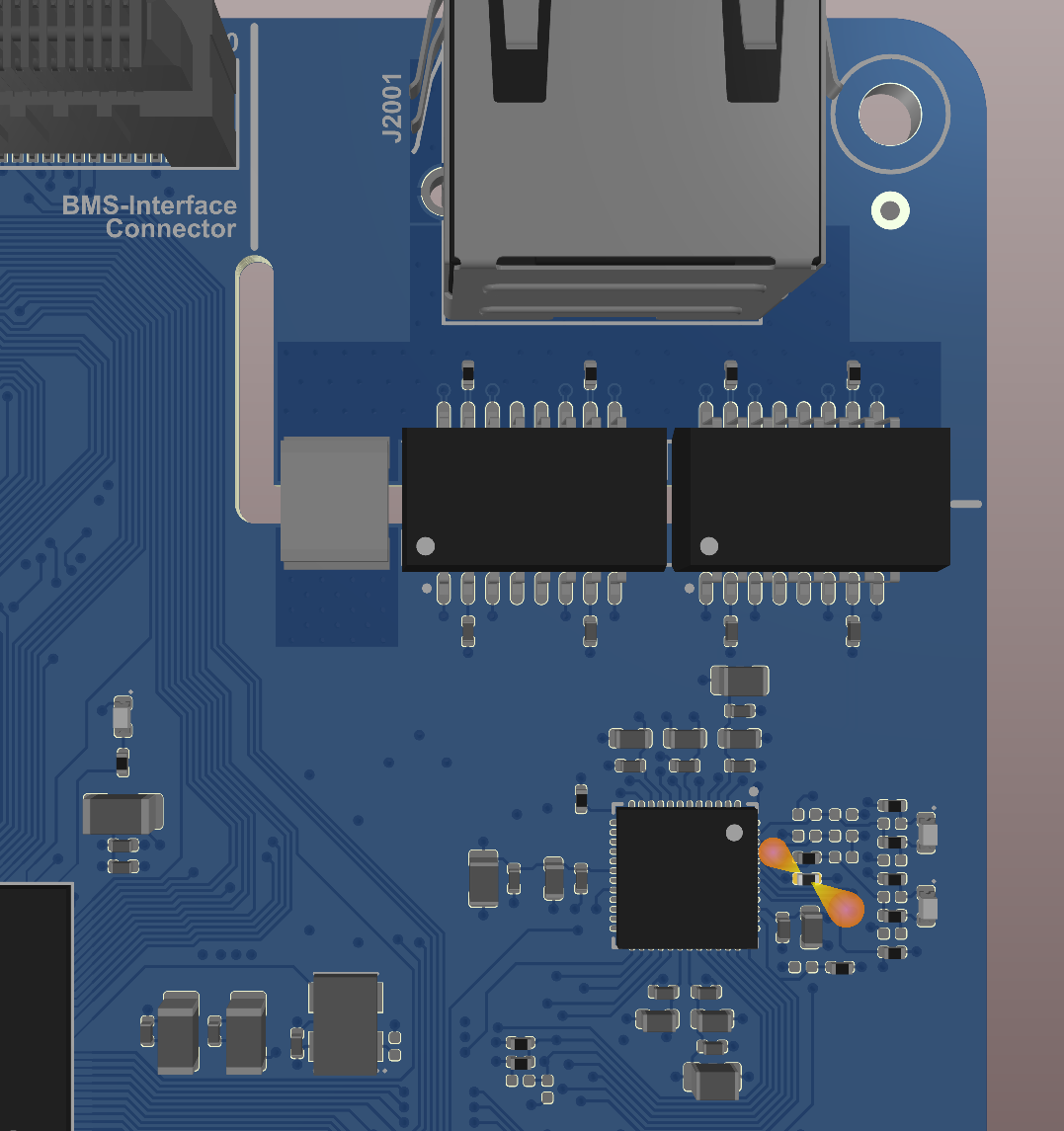

The following specifications must be met to ensure a safe and optimal work with the BMS-Master Board hardware.
4.1.2.1. Electrical Ratings
Description |
Minimum |
Typical |
Maximum |
Unit |
|---|---|---|---|---|
Supply Voltage Clamp 30 (VSUP_30) |
9 |
12 |
55 |
V DC |
Supply Voltage Clamp 30C (VSUP_30C) |
9 |
12 |
55 |
V DC |
Contactor Continuous Current |
– |
– |
1.8 |
A |
Contactor Feedback Supply Voltage |
– |
VSUP_30 |
– |
V |
Interlock Circuit Sink Current |
– |
10 |
– |
mA |
Idle Supply Current at 12V DC for VSUP_30 |
– |
215 |
– |
mA |
Idle Supply Current at 24V DC for VSUP_30 |
– |
160 |
– |
mA |
4.1.2.2. Mechanical Dimensions (BMS-Master PCB only)
Description |
Value |
Unit |
|---|---|---|
Width |
120 |
mm |
Length |
200 |
mm |
Height |
13 |
mm |
Weight |
129 |
g |
