4.1.2. Master TMS570 v1.1.1

Note

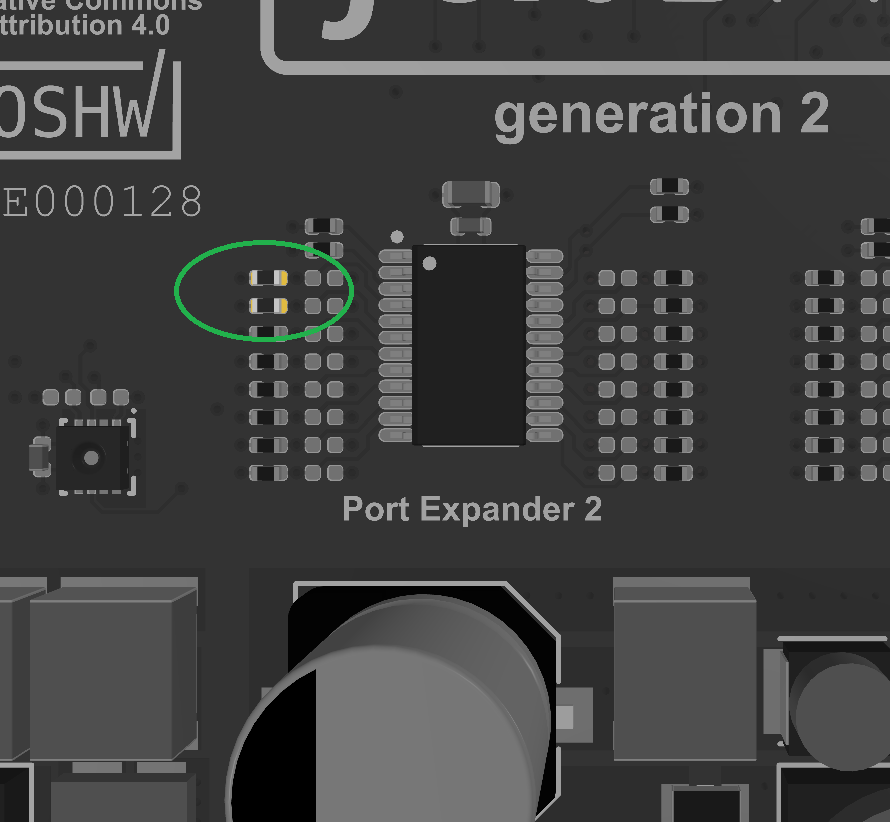

The changelog for this release is found at v1.1.1.

The following specifications must be met to ensure a safe and optimal work with the BMS-Master hardware.

4.1.2.1. Electrical Ratings

Description

Minimum

Typical

Maximum

Unit

Supply Voltage Clamp 30 (VSUP_30)

9

12

55

V DC

Supply Voltage Clamp 30C (VSUP_30C)

9

12

55

V DC

Contactor Continuous Current

1.8

A

Contactor Feedback Supply Voltage

VSUP_30

V

Interlock Circuit Sink Current

10

mA

Idle Supply Current at 12V DC for VSUP_30

215

mA

Idle Supply Current at 24V DC for VSUP_30

160

mA

4.1.2.2. Mechanical Dimensions (BMS-Master PCB only)

Description

Value

Unit

Width

120

mm

Length

200

mm

Height

13

mm

Weight

129

g
