Headers for the driver for the SPI module. More...

#include "spi_cfg.h"

Include dependency graph for spi.h:

This graph shows which files directly or indirectly include this file:

Functions
STD_RETURN_TYPE_e	SPI_TransmitDummyByte (SPI_INTERFACE_CONFIG_s *pSpiInterface, uint32_t delay)
	Sends a dummy byte to wake up the SPI interface. More...

STD_RETURN_TYPE_e	SPI_TransmitDataWithDummy (SPI_INTERFACE_CONFIG_s pSpiInterface, uint32_t delay, uint16_t pTxBuff, uint32_t frameLength)
	Sends data on SPI without DMA, with wake-up byte. More...

STD_RETURN_TYPE_e	SPI_TransmitData (SPI_INTERFACE_CONFIG_s pSpiInterface, uint16_t pTxBuff, uint32_t frameLength)
	Sends data on SPI without DMA. More...

STD_RETURN_TYPE_e	SPI_TransmitReceiveData (SPI_INTERFACE_CONFIG_s pSpiInterface, uint16 pTxBuff, uint16 *pRxBuff, uint32 frameLength)
	Transmits and receives data on SPI without DMA. More...

STD_RETURN_TYPE_e	SPI_DirectlyTransmitReceiveData (SPI_INTERFACE_CONFIG_s pSpiInterface, uint16 pTxBuff, uint16 *pRxBuff, uint32 frameLength)
	Transmits and receives data on SPI without DMA. More...

STD_RETURN_TYPE_e	SPI_TransmitReceiveDataDma (SPI_INTERFACE_CONFIG_s pSpiInterface, uint16_t pTxBuff, uint16_t *pRxBuff, uint32_t frameLength)
	Transmits and receives data on SPI with DMA. More...

STD_RETURN_TYPE_e	SPI_TransmitReceiveDataWithDummyDma (SPI_INTERFACE_CONFIG_s pSpiInterface, uint32_t delay, uint16_t pTxBuff, uint16_t *pRxBuff, uint32_t frameLength)
	Transmits and receives data on SPI with DMA. More...

STD_RETURN_TYPE_e	SPI_Lock (uint8_t spi)
	Locks SPI interfaces. More...

void	SPI_Unlock (uint8_t spi)
	Unlocks SPI interfaces. More...

Detailed Description

Headers for the driver for the SPI module.

Copyright: © 2010 - 2021, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

BSD 3-Clause License Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

″This product uses parts of foxBMS®″

″This product includes parts of foxBMS®″

″This product is derived from foxBMS®″

Author: foxBMS Team

Date: 2019-12-12 (date of creation)

Updated: 2019-12-12 (date of last update)

Prefix: SPI

Definition in file spi.h.

Function Documentation

◆ SPI_DirectlyTransmitReceiveData()

STD_RETURN_TYPE_e SPI_DirectlyTransmitReceiveData	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint16 *	pTxBuff,
		uint16 *	pRxBuff,
		uint32	frameLength
	)

Transmits and receives data on SPI without DMA.

This function can be used to send and receive data via SPI. SPI communication is performed in blocking mode but setting/resetting chip select and locking of the peripheral is not handled by this function. This must be ensured by the caller.

Parameters

pSpiInterface	pointer to SPI interface configuration
pTxBuff	pointer to data that is transmitted by the SPI interface
pRxBuff	pointer to data that is received by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

Definition at line 162 of file spi.c.

◆ SPI_Lock()

STD_RETURN_TYPE_e SPI_Lock ( uint8_t spi )

Locks SPI interfaces.

This function is used to change the state of the SPI_busy_flags variable to "locked".

Parameters

spi	SPI interface to be locked (0-4 on the TMS570LC4357)

Returns: STD_OK if SPI interface could be locked, STD_NOT_OK otherwise

Definition at line 403 of file spi.c.

Here is the call graph for this function:

◆ SPI_TransmitData()

STD_RETURN_TYPE_e SPI_TransmitData	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint16_t *	pTxBuff,
		uint32_t	frameLength
	)

Sends data on SPI without DMA.

Parameters

pSpiInterface	pointer to SPI interface configuration
pTxBuff	pointer to data that is transmitted by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

Definition at line 100 of file spi.c.

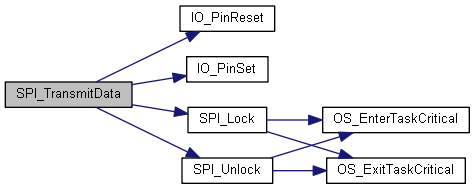

Here is the call graph for this function:

◆ SPI_TransmitDataWithDummy()

STD_RETURN_TYPE_e SPI_TransmitDataWithDummy	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint32_t	delay,
		uint16_t *	pTxBuff,
		uint32_t	frameLength
	)

Sends data on SPI without DMA, with wake-up byte.

It calls SPI_SendDummyByte() to wake-up the SPI interface.

Parameters

pSpiInterface	pointer to SPI interface configuration
delay	delay to wait after dummy byte transfer
pTxBuff	pointer to data that is transmitted by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

Definition at line 121 of file spi.c.

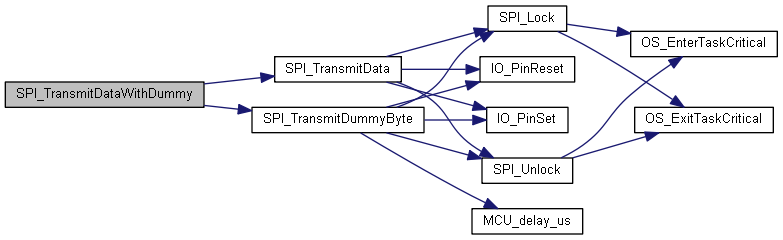

Here is the call graph for this function:

◆ SPI_TransmitDummyByte()

STD_RETURN_TYPE_e SPI_TransmitDummyByte	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint32_t	delay
	)

Sends a dummy byte to wake up the SPI interface.

Parameters

pSpiInterface	pointer to SPI interface configuration
delay	delay to wait after dummy byte transfer

Returns: status of the SPI transfer

Definition at line 77 of file spi.c.

Here is the call graph for this function:

◆ SPI_TransmitReceiveData()

STD_RETURN_TYPE_e SPI_TransmitReceiveData	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint16 *	pTxBuff,
		uint16 *	pRxBuff,
		uint32	frameLength
	)

Transmits and receives data on SPI without DMA.

This function can be used to send and receive data via SPI. SPI communication is performed in blocking mode and chip select is set/reset automatically.

Parameters

pSpiInterface	pointer to SPI interface configuration
pTxBuff	pointer to data that is transmitted by the SPI interface
pRxBuff	pointer to data that is received by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

Definition at line 138 of file spi.c.

Here is the call graph for this function:

◆ SPI_TransmitReceiveDataDma()

STD_RETURN_TYPE_e SPI_TransmitReceiveDataDma	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint16_t *	pTxBuff,
		uint16_t *	pRxBuff,
		uint32_t	frameLength
	)

Transmits and receives data on SPI with DMA.

This function can be used to send and receive data via SPI. SPI communication is performed in blocking mode and chip select is set/reset automatically..

Parameters

pSpiInterface	pointer to SPI interface configuration
pTxBuff	pointer to data that is transmitted by the SPI interface
pRxBuff	pointer to data that is received by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

Definition at line 179 of file spi.c.

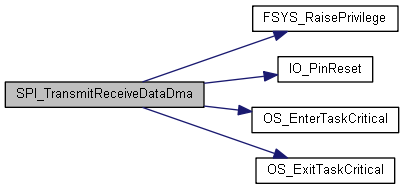

Here is the call graph for this function:

◆ SPI_TransmitReceiveDataWithDummyDma()

STD_RETURN_TYPE_e SPI_TransmitReceiveDataWithDummyDma	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint32_t	delay,
		uint16_t *	pTxBuff,
		uint16_t *	pRxBuff,
		uint32_t	frameLength
	)

Transmits and receives data on SPI with DMA.

This function can be used to send and receive data via SPI. SPI communication is performed in blocking mode and chip select is set/reset automatically. A dummy is sent first.

Parameters

pSpiInterface	pointer to SPI interface configuration
delay	delay to wait after dummy byte transfer
pTxBuff	pointer to data that is transmitted by the SPI interface
pRxBuff	pointer to data that is received by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

Definition at line 287 of file spi.c.

Here is the call graph for this function:

◆ SPI_Unlock()

void SPI_Unlock ( uint8_t spi )

Unlocks SPI interfaces.

This function is used to change the state of the SPI_busy_flags variable to "unlocked".

Parameters

spi	SPI interface to be unlocked (0-4 on the TMS570LC4357)

Definition at line 418 of file spi.c.

Here is the call graph for this function:
