bal_cfg.h File Reference

Header for the configuration for the driver for balancing. More...

#include "general.h"

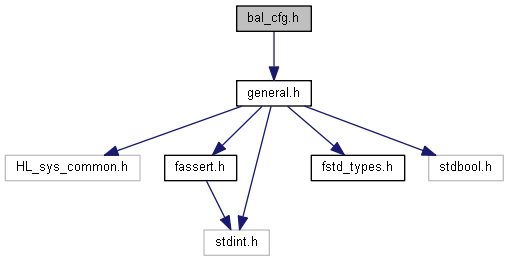

Include dependency graph for bal_cfg.h:

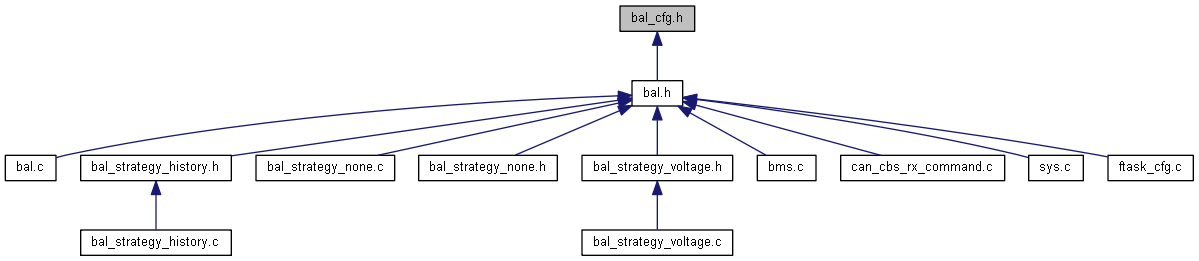

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	BAL_STATEMACH_SHORTTIME_100ms   (1U)
#define	BAL_STATEMACH_LONGTIME_100ms   (50U)
#define	BAL_STATEMACH_BALANCINGTIME_100ms   (10U)
#define	BAL_THRESHOLD_mV   (200)
#define	BAL_HYSTERESIS_mV   (200)
#define	BAL_LOWER_VOLTAGE_LIMIT_mV   (2000)
#define	BAL_UPPER_TEMPERATURE_LIMIT_ddegC   (700)

Detailed Description

Header for the configuration for the driver for balancing.

Copyright

© 2010 - 2021, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

• ″This product uses parts of foxBMS®″
• ″This product includes parts of foxBMS®″
• ″This product is derived from foxBMS®″

Author

foxBMS Team

Date

2020-02-24 (date of creation)

Updated

2020-02-24 (date of last update)

Prefix

BAL

Definition in file bal_cfg.h.

Macro Definition Documentation

BAL_HYSTERESIS_mV

#define BAL_HYSTERESIS_mV   (200)

BAL hysteresis for voltage threshold when balancing was finished in mV

Definition at line 76 of file bal_cfg.h.

BAL_LOWER_VOLTAGE_LIMIT_mV

#define BAL_LOWER_VOLTAGE_LIMIT_mV   (2000)

BAL lower voltage limit in MV

Definition at line 79 of file bal_cfg.h.

BAL_STATEMACH_BALANCINGTIME_100ms

#define BAL_STATEMACH_BALANCINGTIME_100ms   (10U)

BAL statemachine balancing time in 100*ms

Definition at line 70 of file bal_cfg.h.

BAL_STATEMACH_LONGTIME_100ms

#define BAL_STATEMACH_LONGTIME_100ms   (50U)

BAL statemachine long time definition in 100*ms

Definition at line 67 of file bal_cfg.h.

BAL_STATEMACH_SHORTTIME_100ms

#define BAL_STATEMACH_SHORTTIME_100ms   (1U)

BAL statemachine short time definition in 100*ms

Definition at line 63 of file bal_cfg.h.

BAL_THRESHOLD_mV

#define BAL_THRESHOLD_mV   (200)

BAL voltage threshold for balancing in mV

Definition at line 73 of file bal_cfg.h.

BAL_UPPER_TEMPERATURE_LIMIT_ddegC

#define BAL_UPPER_TEMPERATURE_LIMIT_ddegC   (700)

BAL upper temperature limit in deci °C

Definition at line 82 of file bal_cfg.h.
