mcu.h File Reference

Headers for the driver for the MCU module. More...

#include "general.h"
Include dependency graph for mcu.h:

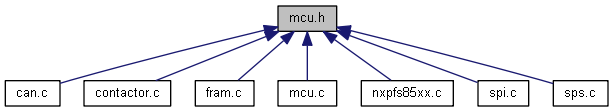

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define MCU_RTI_CNT0_FRC0_REG   (*((volatile uint32_t *)0xFFFFFC10))


Functions

void MCU_delay_us (uint32_t delay_us)
 Wait blocking a certain time in microseconds. More...


Detailed Description

Headers for the driver for the MCU module.

Copyright
© 2010 - 2021, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

  1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
  3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

  • ″This product uses parts of foxBMS®″
  • ″This product includes parts of foxBMS®″
  • ″This product is derived from foxBMS®″
Author
foxBMS Team
Date
2019-02-19 (date of creation)
Updated
2019-02-19 (date of last update)
Prefix
MCU

Definition in file mcu.h.

Macro Definition Documentation

◆ MCU_RTI_CNT0_FRC0_REG

#define MCU_RTI_CNT0_FRC0_REG   (*((volatile uint32_t *)0xFFFFFC10))

Address of Free Running Counter 0 (FRC0)

Definition at line 64 of file mcu.h.

Function Documentation

◆ MCU_delay_us()

void MCU_delay_us ( uint32_t  delay_us)

Wait blocking a certain time in microseconds.

This function uses the Free Running Counter 0 (FRC0) to generate a delay in microseconds. It does not modify anything related to the counter. This counter is already used by FreeRTOS.

Parameters
delay_ustime in microseconds to wait

This is the frequency of the FRC0 counter Datasheet SPNU563A-March 2018 p. 585 formula 23

First the time of one FRC0 increment in microseconds is computed with increment_time = (1/rti_clock)*1e6 The 1e6 factor is to get the period in microseconds.

The number of increments needed to reach 1 microsecond is then computed with nr_increments_for_1us = (1us/increment_time)

To avoid floating point computation problems, the number of increments needed to reach 1 microsecond is computed at once with:

Poll FRC0 value until the value corresponding to the desired waiting timing has been reached. The timeout is to ensure the code does not get trapped here.

Definition at line 80 of file mcu.c.
