plausibility.h File Reference

plausibility checks for cell voltage and cell temperatures More...

#include "plausibility_cfg.h"
#include "database.h"

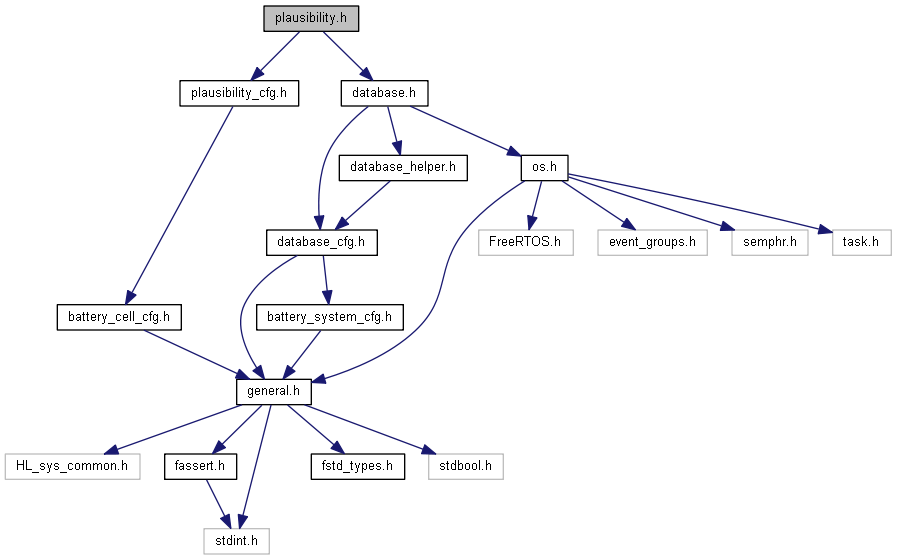

Include dependency graph for plausibility.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
STD_RETURN_TYPE_e	PL_CheckStringVoltage (int32_t voltageMic_mV, int32_t voltageCurrentSensor_mV)
	Pack voltage plausibility check between LTC and current sensor values. More...
STD_RETURN_TYPE_e	PL_CheckCellvoltage (int16_t baseCellVoltage, int16_t redundancy0CellVoltage, int16_t *pCellVoltage)
	Cell voltage plausibility check between two redundant cell voltage measurement values. More...
STD_RETURN_TYPE_e	PL_CheckCelltemperature (int16_t baseCelltemperature, int16_t redundancy0Celltemperature, int16_t *pCelltemperature)
	Cell temperature plausibility check between two redundant cell temperature measurement values. More...
STD_RETURN_TYPE_e	PL_CheckVoltageSpread (DATA_BLOCK_CELL_VOLTAGE_s *pCellvoltages, DATA_BLOCK_MIN_MAX_s *pMinMaxAverageValues)
	Cell voltage spread plausibility check. More...
STD_RETURN_TYPE_e	PL_CheckTemperatureSpread (DATA_BLOCK_CELL_TEMPERATURE_s *pCellTemperatures, DATA_BLOCK_MIN_MAX_s *pMinMaxAverageValues)
	Cell temperature spread plausibility check. More...

Detailed Description

plausibility checks for cell voltage and cell temperatures

Copyright

© 2010 - 2021, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

• ″This product uses parts of foxBMS®″
• ″This product includes parts of foxBMS®″
• ″This product is derived from foxBMS®″

Author

foxBMS Team

Date

2020-02-24 (date of creation)

Updated

2020-02-24 (date of last update)

Prefix

PL

Definition in file plausibility.h.

Function Documentation

PL_CheckCelltemperature()

STD_RETURN_TYPE_e PL_CheckCelltemperature	(	int16_t	baseCelltemperature,
		int16_t	redundancy0Celltemperature,
		int16_t *	pCelltemperature
	)

Cell temperature plausibility check between two redundant cell temperature measurement values.

Parameters

[in]	baseCelltemperature	cell temperature from base measurement
[in]	redundancy0Celltemperature	cell temperature from redundant measurement
[out]	pCelltemperature	output cell temperature after plausibility check

Returns

STD_OK if cell voltage valid, otherwise STD_NOT_OK

Definition at line 102 of file plausibility.c.

PL_CheckCellvoltage()

STD_RETURN_TYPE_e PL_CheckCellvoltage	(	int16_t	baseCellVoltage,
		int16_t	redundancy0CellVoltage,
		int16_t *	pCellVoltage
	)

Cell voltage plausibility check between two redundant cell voltage measurement values.

Parameters

[in]	baseCellVoltage	cell voltage from base measurement
[in]	redundancy0CellVoltage	cell voltage from redundant measurement
[out]	pCellVoltage	output cell voltage after plausibility check

Returns

STD_OK if cell voltage valid, otherwise STD_NOT_OK

Definition at line 85 of file plausibility.c.

PL_CheckStringVoltage()

STD_RETURN_TYPE_e PL_CheckStringVoltage	(	int32_t	voltageMic_mV,
		int32_t	voltageCurrentSensor_mV
	)

Pack voltage plausibility check between LTC and current sensor values.

Parameters

voltageMic_mV	pack voltage measured by MIC
voltageCurrentSensor_mV	pack voltage measured by current sensor

Returns

STD_OK if pack voltage valid, otherwise STD_NOT_OK

Definition at line 73 of file plausibility.c.

PL_CheckTemperatureSpread()

STD_RETURN_TYPE_e PL_CheckTemperatureSpread	(	DATA_BLOCK_CELL_TEMPERATURE_s *	pCellTemperatures,
		DATA_BLOCK_MIN_MAX_s *	pMinMaxAverageValues
	)

Cell temperature spread plausibility check.

Parameters

[in,out]	pCellTemperatures	pointer to cell temperature database entry
[in]	pMinMaxAverageValues	pointer to minimum/maximum/average database entry

Returns

STD_OK if no issue detected, otherwise STD_NOT_OK

Definition at line 151 of file plausibility.c.

Here is the call graph for this function:

PL_CheckVoltageSpread()

STD_RETURN_TYPE_e PL_CheckVoltageSpread	(	DATA_BLOCK_CELL_VOLTAGE_s *	pCellvoltages,
		DATA_BLOCK_MIN_MAX_s *	pMinMaxAverageValues
	)

Cell voltage spread plausibility check.

Parameters

[in,out]	pCellvoltages	pointer to cell voltage database entry
[in]	pMinMaxAverageValues	pointer to minimum/maximum/average database entry

Returns

STD_OK if no issue detected, otherwise STD_NOT_OK

Definition at line 119 of file plausibility.c.

Here is the call graph for this function:
