mcu.c File Reference

Driver for the MCU module. More...

#include "mcu.h"
#include "HL_system.h"

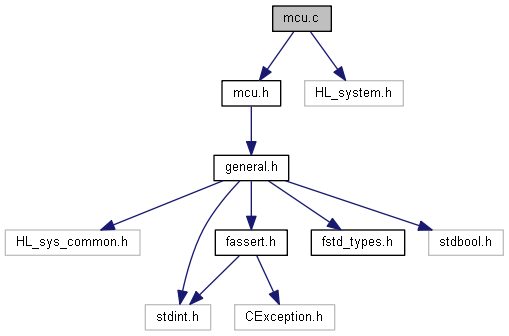

Include dependency graph for mcu.c:

Go to the source code of this file.

Macros
#define	MCU_RTI_CNT0_CPUC0_REG   (0x00000001U)
#define	MCU_US_WAIT_TIMEOUT   (10000U)

Functions
void	MCU_delay_us (uint32_t delay_us)
	Wait blocking a certain time in microseconds. More...

Detailed Description

Driver for the MCU module.

Copyright

© 2010 - 2021, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

• ″This product uses parts of foxBMS®″
• ″This product includes parts of foxBMS®″
• ″This product is derived from foxBMS®″

Author

foxBMS Team

Date

2019-02-19 (date of creation)

Updated

2019-02-19 (date of last update)

Prefix

MCU

Definition in file mcu.c.

Macro Definition Documentation

MCU_RTI_CNT0_CPUC0_REG

#define MCU_RTI_CNT0_CPUC0_REG   (0x00000001U)

This is defined in port.c for FreeRTOS. It is named portRTI_CNT0_CPUC0_REG This must be changed to reflect the FreeRTOS configuration

Definition at line 65 of file mcu.c.

MCU_US_WAIT_TIMEOUT

#define MCU_US_WAIT_TIMEOUT   (10000U)

threshold in order to limit the time spent in wait to avoid livelock in wait

Definition at line 68 of file mcu.c.

Function Documentation

MCU_delay_us()

void MCU_delay_us

(

uint32_t

delay_us

)

Wait blocking a certain time in microseconds.

This function uses the Free Running Counter 0 (FRC0) to generate a delay in microseconds. It does not modify anything related to the counter. This counter is already used by FreeRTOS.

Parameters

delay_us

time in microseconds to wait

This is the frequency of the FRC0 counter Datasheet SPNU563A-March 2018 p. 585 formula 23

First the time of one FRC0 increment in microseconds is computed with increment_time = (1/rti_clock)*1e6 The 1e6 factor is to get the period in microseconds.

The number of increments needed to reach 1 microsecond is then computed with nr_increments_for_1us = (1us/increment_time)

To avoid floating point computation problems, the number of increments needed to reach 1 microsecond is computed at once with:

Poll FRC0 value until the value corresponding to the desired waiting timing has been reached. The timeout is to ensure the code does not get trapped here.

Definition at line 80 of file mcu.c.
