Header for the configuration for the driver for the interlock. More...

#include "general.h"
#include "HL_het.h"

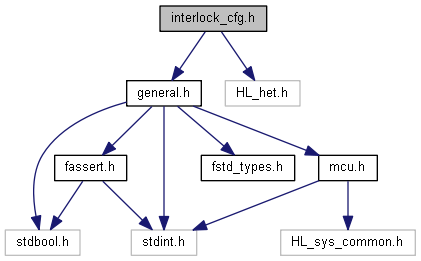

Include dependency graph for interlock_cfg.h:

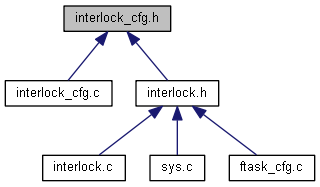

This graph shows which files directly or indirectly include this file:

Macros
#define	ILCK_IO_REG_DIR (hetREG1->DIR)

#define	ILCK_IO_REG_PORT (hetREG1)

#define	ILCK_INTERLOCK_CONTROL_PIN_IL_HS_ENABLE (30u)

#define	ILCK_INTERLOCK_FEEDBACK_PIN_IL_STATE (29u)

#define	ILCK_ADC_INPUT_HIGH_SIDE_VOLTAGE_SENSE (2u)

#define	ILCK_ADC_INPUT_LOW_SIDE_VOLTAGE_SENSE (3u)

#define	ILCK_ADC_INPUT_HIGH_SIDE_CURRENT_SENSE (4u)

#define	ILCK_ADC_INPUT_LOW_SIDE_CURRENT_SENSE (5u)

#define	ILCK_VOLTAGE_DIVIDER_FACTOR ((5.6f + 3.9f) / 3.9f)

#define	ILCK_FACTOR_IL_HS_CS_1_ohm (80.0f / 2049.0f)

#define	ILCK_FACTOR_IL_LS_CS_1_ohm (0.025f)

#define	ILCK_STATEMACH_SHORTTIME (1u)
	ILCK statemachine short time definition in ILCK_Trigger() calls until next state/substate is processed. More...

Enumerations
enum	ILCK_ELECTRICAL_STATE_TYPE_e { ILCK_SWITCH_OFF , ILCK_SWITCH_ON , ILCK_SWITCH_UNDEF }

Detailed Description

Header for the configuration for the driver for the interlock.

Copyright: © 2010 - 2022, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

″This product uses parts of foxBMS®″
″This product includes parts of foxBMS®″
″This product is derived from foxBMS®″

Author: foxBMS Team

Date: 2020-02-24 (date of creation)

Updated: 2022-05-30 (date of last update)

Version: v1.3.0

Prefix: ILCK

Definition in file interlock_cfg.h.

Macro Definition Documentation

◆ ILCK_ADC_INPUT_HIGH_SIDE_CURRENT_SENSE

#define ILCK_ADC_INPUT_HIGH_SIDE_CURRENT_SENSE (4u)

High-side current sense signal connected to ADC input 4 (IL_HS_CS)

Definition at line 82 of file interlock_cfg.h.

◆ ILCK_ADC_INPUT_HIGH_SIDE_VOLTAGE_SENSE

#define ILCK_ADC_INPUT_HIGH_SIDE_VOLTAGE_SENSE (2u)

High-side voltage sense signal connected to ADC input 2 (IL_HS_VS)

Definition at line 78 of file interlock_cfg.h.

◆ ILCK_ADC_INPUT_LOW_SIDE_CURRENT_SENSE

#define ILCK_ADC_INPUT_LOW_SIDE_CURRENT_SENSE (5u)

Low-side current sense signal connected to ADC input 5 (IL_LS_CS)

Definition at line 84 of file interlock_cfg.h.

◆ ILCK_ADC_INPUT_LOW_SIDE_VOLTAGE_SENSE

#define ILCK_ADC_INPUT_LOW_SIDE_VOLTAGE_SENSE (3u)

Low-side voltage sense signal connected to ADC input 3 (IL_LS_VS)

Definition at line 80 of file interlock_cfg.h.

◆ ILCK_FACTOR_IL_HS_CS_1_ohm

#define ILCK_FACTOR_IL_HS_CS_1_ohm (80.0f / 2049.0f)

Conversion factor for interlock current IL_HS_CS 2k49 ohm is the resistance through which sense current flows 80 is the (output current / sense current) ratio of high-side power switch TPS2H000-Q1 data sheet SLVSD72D - DECEMBER 2015 - REVISED DECEMBER 2019 p.8

Definition at line 96 of file interlock_cfg.h.

◆ ILCK_FACTOR_IL_LS_CS_1_ohm

#define ILCK_FACTOR_IL_LS_CS_1_ohm (0.025f)

Linear conversion factor for low-side interlock current measurement (IL_LS_CS). Measurement performed via 2 ohm shunt with a gain of 20V/V

Definition at line 100 of file interlock_cfg.h.

◆ ILCK_INTERLOCK_CONTROL_PIN_IL_HS_ENABLE

#define ILCK_INTERLOCK_CONTROL_PIN_IL_HS_ENABLE (30u)

Enable pin for diagnostic power supply

Definition at line 71 of file interlock_cfg.h.

◆ ILCK_INTERLOCK_FEEDBACK_PIN_IL_STATE

#define ILCK_INTERLOCK_FEEDBACK_PIN_IL_STATE (29u)

Defines the pin where interlock feedback pin is connected to the mcu

Definition at line 74 of file interlock_cfg.h.

◆ ILCK_IO_REG_DIR

#define ILCK_IO_REG_DIR (hetREG1->DIR)

IO register to which the interlock is connected

Definition at line 66 of file interlock_cfg.h.

◆ ILCK_IO_REG_PORT

#define ILCK_IO_REG_PORT (hetREG1)

IO port for interlock related pins

Definition at line 68 of file interlock_cfg.h.

◆ ILCK_STATEMACH_SHORTTIME

#define ILCK_STATEMACH_SHORTTIME (1u)

ILCK statemachine short time definition in ILCK_Trigger() calls until next state/substate is processed.

Definition at line 106 of file interlock_cfg.h.

◆ ILCK_VOLTAGE_DIVIDER_FACTOR

#define ILCK_VOLTAGE_DIVIDER_FACTOR ((5.6f + 3.9f) / 3.9f)

Factor of resistor divider used for measuring the low- and high-side interlock voltages. Used resistor values are 5k6 ohm and 3k9 ohm.

Definition at line 88 of file interlock_cfg.h.

Enumeration Type Documentation

◆ ILCK_ELECTRICAL_STATE_TYPE_e

enum ILCK_ELECTRICAL_STATE_TYPE_e

Symbolic names for contactors' possible states

Enumerator
ILCK_SWITCH_OFF	Contactor off --> Contactor is open
ILCK_SWITCH_ON	Contactor on --> Contactor is closed
ILCK_SWITCH_UNDEF	Contactor undefined --> Contactor state not known

Definition at line 109 of file interlock_cfg.h.
