API header for the insulation monitoring device. More...

#include "general.h"
#include "can_cfg.h"
#include "ftask_cfg.h"
#include "database.h"

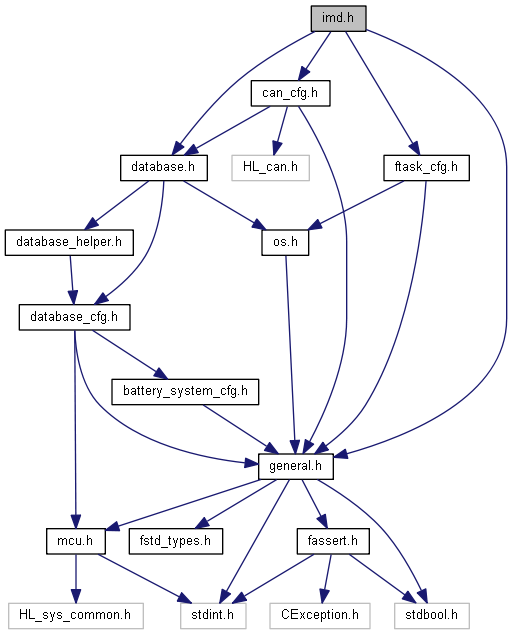

Include dependency graph for imd.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	IMD_PERIODIC_CALL_TIME_ms (FTSK_TASK_CYCLIC_100MS_CYCLE_TIME)

#define	IMD_ERROR_THRESHOLD_INSULATION_RESISTANCE_kOhm (500u)

#define	IMD_WARNING_THRESHOLD_INSULATION_RESISTANCE_kOhm (750u)

Functions
IMD_RETURN_TYPE_e	IMD_RequestInitialization (void)
	Request initialization of IMD statemachine. More...

IMD_RETURN_TYPE_e	IMD_RequestInsulationMeasurement (void)
	Request to activate the actual IMD measurement. More...

IMD_RETURN_TYPE_e	IMD_RequestMeasurementStop (void)
	Request to deactivate the actual IMD measurement. More...

bool	IMD_GetInitializationState (void)
	Gets the initialization state. More...

STD_RETURN_TYPE_e	IMD_Trigger (void)
	trigger function for the IMD driver state machine. More...

IMD_FSM_STATES_e	IMD_ProcessInitializationState (void)
	Processes the initialization state. More...

IMD_FSM_STATES_e	IMD_ProcessEnableState (void)
	Processes the IMD enable state. More...

IMD_FSM_STATES_e	IMD_ProcessRunningState (DATA_BLOCK_INSULATION_MONITORING_s *pTableInsulationMonitoring)
	Processes the running state. More...

IMD_FSM_STATES_e	IMD_ProcessShutdownState (void)
	Processes the shutdown state. More...

Detailed Description

API header for the insulation monitoring device.

Copyright: © 2010 - 2022, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

″This product uses parts of foxBMS®″
″This product includes parts of foxBMS®″
″This product is derived from foxBMS®″

Author: foxBMS Team

Date: 2020-11-20 (date of creation)

Updated: 2022-05-30 (date of last update)

Version: v1.3.0

Prefix: IMD

Definition in file imd.h.

Macro Definition Documentation

◆ IMD_ERROR_THRESHOLD_INSULATION_RESISTANCE_kOhm

#define IMD_ERROR_THRESHOLD_INSULATION_RESISTANCE_kOhm (500u)

Minimum required insulation resistance - Error threshold

Definition at line 70 of file imd.h.

◆ IMD_PERIODIC_CALL_TIME_ms

#define IMD_PERIODIC_CALL_TIME_ms (FTSK_TASK_CYCLIC_100MS_CYCLE_TIME)

Definition at line 67 of file imd.h.

◆ IMD_WARNING_THRESHOLD_INSULATION_RESISTANCE_kOhm

#define IMD_WARNING_THRESHOLD_INSULATION_RESISTANCE_kOhm (750u)

Minimum required insulation resistance - Warning threshold

Definition at line 73 of file imd.h.

Enumeration Type Documentation

◆ IMD_FSM_STATES_e

enum IMD_FSM_STATES_e

States of the state machine

Enumerator
IMD_FSM_STATE_DUMMY	dummy state - always the first state
IMD_FSM_STATE_HAS_NEVER_RUN	never run state - always the second state
IMD_FSM_STATE_UNINITIALIZED	uninitialized state
IMD_FSM_STATE_INITIALIZATION	initializing the state machine
IMD_FSM_STATE_IMD_ENABLE	switch on IMD
IMD_FSM_STATE_SHUTDOWN	shut down state of IMD state machine
IMD_FSM_STATE_RUNNING	operational mode of the state machine
IMD_FSM_STATE_ERROR	state for error processing

Definition at line 92 of file imd.h.

◆ IMD_RETURN_TYPE_e

enum IMD_RETURN_TYPE_e

Possible return values when state requests are made to the IMD statemachine

Enumerator
IMD_REQUEST_OK	request was successful
IMD_REQUEST_PENDING	requested to be executed
IMD_ILLEGAL_REQUEST	Request can not be executed
IMD_ALREADY_INITIALIZED	IMD statemachine already initialized

Definition at line 76 of file imd.h.

◆ IMD_STATE_REQUEST_e

enum IMD_STATE_REQUEST_e

State requests for the IMD statemachine

Enumerator
IMD_STATE_INITIALIZE_REQUEST	request for initialization
IMD_STATE_SWITCH_ON_REQUEST	request to switch on IMD device
IMD_STATE_SHUTDOWN_REQUEST	request for shut down
IMD_STATE_NO_REQUEST	dummy request for no request

Definition at line 84 of file imd.h.

Function Documentation

◆ IMD_GetInitializationState()

bool IMD_GetInitializationState ( void )

Gets the initialization state.

This function is used for getting the IMD initialization state.

Returns: true if statemachine initialized, otherwise false

Definition at line 520 of file imd.c.

◆ IMD_ProcessEnableState()

IMD_FSM_STATES_e IMD_ProcessEnableState ( void )

Processes the IMD enable state.

This function needs to be implemented in the dedicated driver. This function enables the actual IMD device to start the insulation measurement. Functionality need to be fullfilled after one call.

Returns: IMD_FSM_STATE_RUNNING if startup has been completed. Returns IMD_FSM_STATE_ERROR if an error is detected that prohibits a working IMD driver.

Definition at line 211 of file bender_ir155.c.

Here is the call graph for this function:

◆ IMD_ProcessInitializationState()

IMD_FSM_STATES_e IMD_ProcessInitializationState ( void )

Processes the initialization state.

This function needs to be implemented in the dedicated driver. This function initializes the required SW modules and peripherals but does not start the actual IMD measurement.

Returns: IMD_FSM_STATE_INITIALIZATION if initialization not fininished and another call is required. IMD_FSM_STATE_IMD_ENABLE if initialization is finished and IMD_FSM_STATE_ERROR if an error is detected that prohibits a working IMD driver.

Definition at line 207 of file bender_ir155.c.

Here is the call graph for this function:

◆ IMD_ProcessRunningState()

IMD_FSM_STATES_e IMD_ProcessRunningState ( DATA_BLOCK_INSULATION_MONITORING_s * pTableInsulationMonitoring )

Processes the running state.

This function needs to be implemented in the dedicated driver

Parameters

pTableInsulationMonitoring pointer to insulation monitoring database entry

Returns: IMD_FSM_STATE_RUNNING if measurement works as expected, otherwise IMD_FSM_STATE_ERROR if an error is detected that prohibits a further execution of the IMD driver.

Definition at line 217 of file bender_ir155.c.

Here is the call graph for this function:

◆ IMD_ProcessShutdownState()

IMD_FSM_STATES_e IMD_ProcessShutdownState ( void )

Processes the shutdown state.

This function needs to be implemented in the dedicated driver. This function disables the actual IMD device to stop the insulation measurement.

Returns: IMD_FSM_STATE_SHUTDOWN if shutdown state is not fininished and another call is required. IMD_FSM_STATE_IMD_ENABLE if shut down has been completed and IMD_FSM_STATE_ERROR if an error is detected that prohibits a working IMD driver.

Definition at line 222 of file bender_ir155.c.

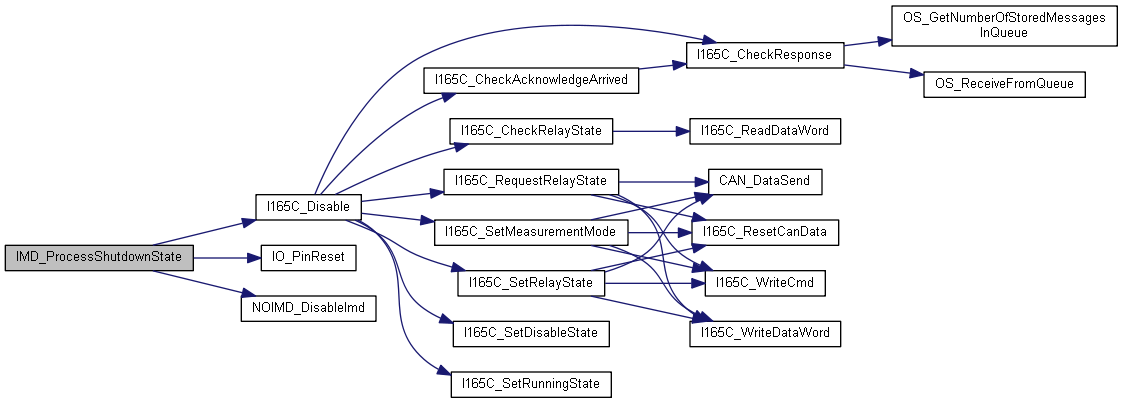

Here is the call graph for this function:

◆ IMD_RequestInitialization()

IMD_RETURN_TYPE_e IMD_RequestInitialization ( void )

Request initialization of IMD statemachine.

Returns: Always IMD_REQUEST_OK

Definition at line 508 of file imd.c.

Here is the call graph for this function:

◆ IMD_RequestInsulationMeasurement()

IMD_RETURN_TYPE_e IMD_RequestInsulationMeasurement ( void )

Request to activate the actual IMD measurement.

Returns: Always IMD_REQUEST_OK

Definition at line 512 of file imd.c.

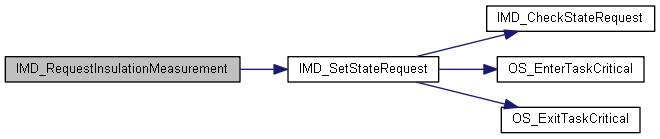

Here is the call graph for this function:

◆ IMD_RequestMeasurementStop()

IMD_RETURN_TYPE_e IMD_RequestMeasurementStop ( void )

Request to deactivate the actual IMD measurement.

Returns: Always IMD_REQUEST_OK

Definition at line 516 of file imd.c.

Here is the call graph for this function:

◆ IMD_Trigger()

STD_RETURN_TYPE_e IMD_Trigger ( void )

trigger function for the IMD driver state machine.

This function contains the sequence of events in the IMD state machine. It must be called time-triggered, every 100ms.

Returns: returns STD_OK if trigger called successfully

Definition at line 524 of file imd.c.

Here is the call graph for this function:

Enumerations
enum	IMD_RETURN_TYPE_e { IMD_REQUEST_OK , IMD_REQUEST_PENDING , IMD_ILLEGAL_REQUEST , IMD_ALREADY_INITIALIZED }

enum	IMD_STATE_REQUEST_e { IMD_STATE_INITIALIZE_REQUEST , IMD_STATE_SWITCH_ON_REQUEST , IMD_STATE_SHUTDOWN_REQUEST , IMD_STATE_NO_REQUEST }

enum	IMD_FSM_STATES_e { IMD_FSM_STATE_DUMMY , IMD_FSM_STATE_HAS_NEVER_RUN , IMD_FSM_STATE_UNINITIALIZED , IMD_FSM_STATE_INITIALIZATION , IMD_FSM_STATE_IMD_ENABLE , IMD_FSM_STATE_SHUTDOWN , IMD_FSM_STATE_RUNNING , IMD_FSM_STATE_ERROR }
