LTC_STATE_s Struct Reference

#include <ltc_defs.h>

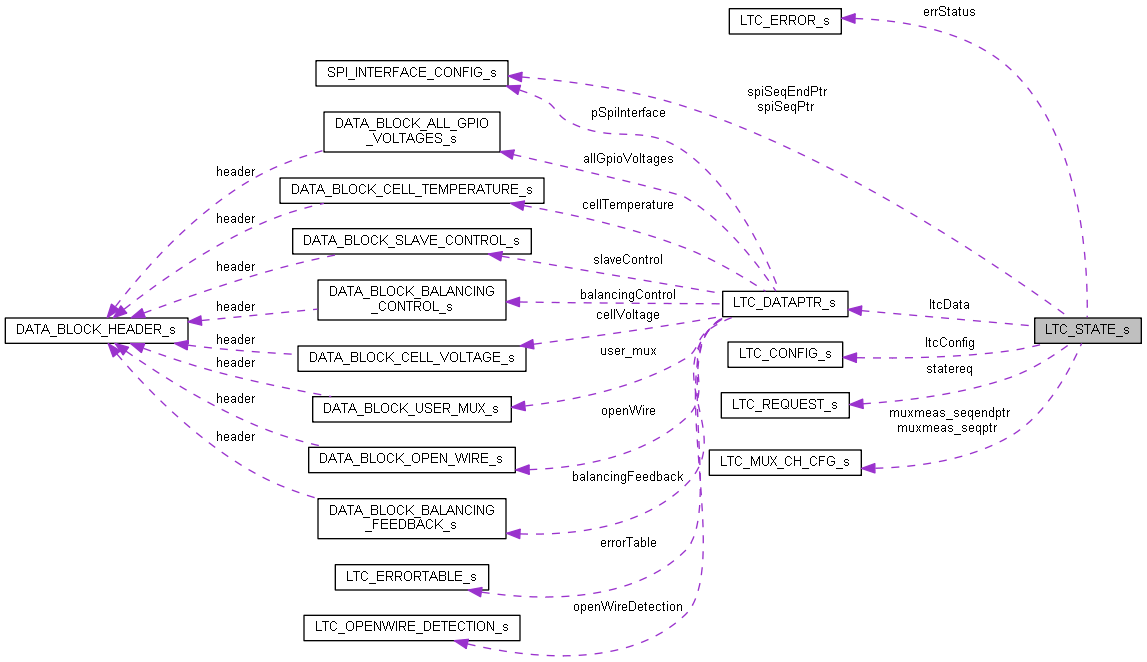

Collaboration diagram for LTC_STATE_s:
Collaboration graph
[legend]

Data Fields

uint16_t timer

LTC_TASK_TYPE_e taskMode

LTC_REQUEST_s statereq

LTC_STATEMACH_e state

uint8_t substate

LTC_STATEMACH_e laststate

uint8_t lastsubstate

LTC_ADCMODE_e adcMode

LTC_ADCMODE_e voltMeasMode

LTC_ADCMODE_e gpioMeasMode

LTC_ADCMODE_e adcModereq

LTC_ADCMEAS_CHAN_e adcMeasCh

LTC_ADCMEAS_CHAN_e adcMeasChreq

uint8_t numberOfMeasuredMux

uint32_t ErrPECCounter

uint8_t ErrRetryCounter

uint32_t ErrRequestCounter

uint8_t triggerentry

uint32_t commandDataTransferTime

uint32_t commandTransferTime

uint32_t gpioClocksTransferTime

uint32_t VoltageSampleTime

uint32_t muxSampleTime

uint8_t instanceID

uint8_t nrBatcellsPerModule

uint8_t busSize

LTC_ERROR_s errStatus

uint8_t * ltcIDs

uint8_t cntDeviceRD

uint32_t ctrlCallCnt

uint8_t taskCycleCnt

LTC_REUSE_MODE_e reusageMeasurementMode

LTC_CONFIG_s ltcConfig

bool first_measurement_made

STD_RETURN_TYPE_e ltc_muxcycle_finished

STD_RETURN_TYPE_e check_spi_flag

STD_RETURN_TYPE_e balance_control_done

uint8_t resendCommandCounter

bool transmit_ongoing

STD_RETURN_TYPE_e dummyByte_ongoing

SPI_INTERFACE_CONFIG_s * spiSeqPtr

SPI_INTERFACE_CONFIG_s * spiSeqEndPtr

uint8_t spiNumberInterfaces

uint8_t currentString

uint8_t requestedString

DIAG_ID_e spiDiagErrorEntry

DIAG_ID_e pecDiagErrorEntry

DIAG_ID_e muxDiagErrorEntry

DIAG_ID_e voltMeasDiagErrorEntry

DIAG_ID_e tempMeasDiagErrorEntry

LTC_DATAPTR_s ltcData

LTC_MUX_CH_CFG_s * muxmeas_seqptr [BS_NR_OF_STRINGS]

LTC_MUX_CH_CFG_s * muxmeas_seqendptr [BS_NR_OF_STRINGS]

uint8_t muxmeas_nr_end [BS_NR_OF_STRINGS]

uint8_t configuration [6]


Detailed Description

This structure contains all the variables relevant for the LTC state machine. The user can get the current state of the LTC state machine with this variable

Definition at line 519 of file ltc_defs.h.

Field Documentation

◆ adcMeasCh

LTC_ADCMEAS_CHAN_e LTC_STATE_s::adcMeasCh

current number of channels measured for GPIOS (one at a time for multiplexers or all five GPIOs)

Definition at line 532 of file ltc_defs.h.

◆ adcMeasChreq

LTC_ADCMEAS_CHAN_e LTC_STATE_s::adcMeasChreq

requested number of channels measured for GPIOS (one at a time for multiplexers or all five GPIOs)

Definition at line 534 of file ltc_defs.h.

◆ adcMode

LTC_ADCMODE_e LTC_STATE_s::adcMode

current LTC ADCmeasurement mode (fast, normal or filtered)

Definition at line 527 of file ltc_defs.h.

◆ adcModereq

LTC_ADCMODE_e LTC_STATE_s::adcModereq

requested LTC ADCmeasurement mode (fast, normal or filtered)

Definition at line 530 of file ltc_defs.h.

◆ balance_control_done

STD_RETURN_TYPE_e LTC_STATE_s::balance_control_done

indicates if balance control was done

Definition at line 564 of file ltc_defs.h.

◆ busSize

uint8_t LTC_STATE_s::busSize

number of connected LTCs to parallel bus network

Definition at line 551 of file ltc_defs.h.

◆ check_spi_flag

STD_RETURN_TYPE_e LTC_STATE_s::check_spi_flag

indicates if interrupt flag or timer must be considered

Definition at line 563 of file ltc_defs.h.

◆ cntDeviceRD

uint8_t LTC_STATE_s::cntDeviceRD

current Index of array ltcIDs to determine device ID

Definition at line 554 of file ltc_defs.h.

◆ commandDataTransferTime

uint32_t LTC_STATE_s::commandDataTransferTime

time needed for sending an instruction to the LTC, followed by data transfer from the LTC

Definition at line 543 of file ltc_defs.h.

◆ commandTransferTime

uint32_t LTC_STATE_s::commandTransferTime

time needed for sending an instruction to the LTC

Definition at line 544 of file ltc_defs.h.

◆ configuration

uint8_t LTC_STATE_s::configuration[6]

holds the configuration of the ltc (configuration register)

Definition at line 585 of file ltc_defs.h.

◆ ctrlCallCnt

uint32_t LTC_STATE_s::ctrlCallCnt

counts the LTC2_CTRL calls

Definition at line 555 of file ltc_defs.h.

◆ currentString

uint8_t LTC_STATE_s::currentString

string currently being addressed

Definition at line 571 of file ltc_defs.h.

◆ dummyByte_ongoing

STD_RETURN_TYPE_e LTC_STATE_s::dummyByte_ongoing

SPI dummy byte is currently transmitted

Definition at line 567 of file ltc_defs.h.

◆ ErrPECCounter

uint32_t LTC_STATE_s::ErrPECCounter

counts the number of times there was A PEC (CRC) error during communication with LTC

Definition at line 537 of file ltc_defs.h.

◆ ErrRequestCounter

uint32_t LTC_STATE_s::ErrRequestCounter

counts the number of illegal requests to the LTC state machine

Definition at line 540 of file ltc_defs.h.

◆ ErrRetryCounter

uint8_t LTC_STATE_s::ErrRetryCounter

counts how many times the drivers retried to communicate with LTC in case of a communication error

Definition at line 539 of file ltc_defs.h.

◆ errStatus

LTC_ERROR_s LTC_STATE_s::errStatus

contains pointer to local error buffer and error indicators

Definition at line 552 of file ltc_defs.h.

◆ first_measurement_made

bool LTC_STATE_s::first_measurement_made

flag that indicates if the first measurement cycle was completed

Definition at line 560 of file ltc_defs.h.

◆ gpioClocksTransferTime

uint32_t LTC_STATE_s::gpioClocksTransferTime

time needed for sending 72 clock signal to the LTC, used for I2C communication

Definition at line 546 of file ltc_defs.h.

◆ gpioMeasMode

LTC_ADCMODE_e LTC_STATE_s::gpioMeasMode

current LTC ADCmeasurement mode (fast, normal or filtered)

Definition at line 529 of file ltc_defs.h.

◆ instanceID

uint8_t LTC_STATE_s::instanceID

number to distinguish between different ltc states, starting with 0,1,2,3....8

Definition at line 549 of file ltc_defs.h.

◆ laststate

LTC_STATEMACH_e LTC_STATE_s::laststate

previous state of the state machine

Definition at line 525 of file ltc_defs.h.

◆ lastsubstate

uint8_t LTC_STATE_s::lastsubstate

previous substate of the state machine

Definition at line 526 of file ltc_defs.h.

◆ ltc_muxcycle_finished

STD_RETURN_TYPE_e LTC_STATE_s::ltc_muxcycle_finished

flag that indicates if the measurement sequence of the multiplexers is finished

Definition at line 562 of file ltc_defs.h.

◆ ltcConfig

LTC_CONFIG_s LTC_STATE_s::ltcConfig

struct that holds the measurement configuration of the ltc network

Definition at line 559 of file ltc_defs.h.

◆ ltcData

LTC_DATAPTR_s LTC_STATE_s::ltcData

contains pointers to the local data buffer

Definition at line 578 of file ltc_defs.h.

◆ ltcIDs

uint8_t* LTC_STATE_s::ltcIDs

array with LTC IDs

Definition at line 553 of file ltc_defs.h.

◆ muxDiagErrorEntry

DIAG_ID_e LTC_STATE_s::muxDiagErrorEntry

diagnosis entry for multiplexer related events

Definition at line 575 of file ltc_defs.h.

◆ muxmeas_nr_end

uint8_t LTC_STATE_s::muxmeas_nr_end[BS_NR_OF_STRINGS]

number of multiplexer channels that have to be measured; end number of sequence, where measurement is finished

Definition at line 583 of file ltc_defs.h.

◆ muxmeas_seqendptr

LTC_MUX_CH_CFG_s* LTC_STATE_s::muxmeas_seqendptr[BS_NR_OF_STRINGS]

point to the end of the multiplexer sequence; pointer to ending point of sequence

Definition at line 581 of file ltc_defs.h.

◆ muxmeas_seqptr

LTC_MUX_CH_CFG_s* LTC_STATE_s::muxmeas_seqptr[BS_NR_OF_STRINGS]

pointer to the multiplexer sequence to be measured (contains a list of elements [multiplexer id, multiplexer channels]) (1,-1)...(3,-1),(0,1),...(0,7)

Definition at line 579 of file ltc_defs.h.

◆ muxSampleTime

uint32_t LTC_STATE_s::muxSampleTime

time stamp at which a multiplexer input was measured

Definition at line 548 of file ltc_defs.h.

◆ nrBatcellsPerModule

uint8_t LTC_STATE_s::nrBatcellsPerModule

number of cells per module

Definition at line 550 of file ltc_defs.h.

◆ numberOfMeasuredMux

uint8_t LTC_STATE_s::numberOfMeasuredMux

number of multiplexer channels measured by the LTC chip before a voltage measurement is made

Definition at line 536 of file ltc_defs.h.

◆ pecDiagErrorEntry

DIAG_ID_e LTC_STATE_s::pecDiagErrorEntry

diagnosis entry for PEC related events

Definition at line 574 of file ltc_defs.h.

◆ requestedString

uint8_t LTC_STATE_s::requestedString

string addressed by the current state request

Definition at line 572 of file ltc_defs.h.

◆ resendCommandCounter

uint8_t LTC_STATE_s::resendCommandCounter

counter if commandy should be send multiple times e.g. ADOW command

Definition at line 565 of file ltc_defs.h.

◆ reusageMeasurementMode

LTC_REUSE_MODE_e LTC_STATE_s::reusageMeasurementMode

flag that indicates if currently any state is reused i.e. cell voltage measurement

Definition at line 558 of file ltc_defs.h.

◆ spiDiagErrorEntry

DIAG_ID_e LTC_STATE_s::spiDiagErrorEntry

diagnosis entry for SPI related events

Definition at line 573 of file ltc_defs.h.

◆ spiNumberInterfaces

uint8_t LTC_STATE_s::spiNumberInterfaces

number of SPI channels that have to be measured

Definition at line 570 of file ltc_defs.h.

◆ spiSeqEndPtr

SPI_INTERFACE_CONFIG_s* LTC_STATE_s::spiSeqEndPtr

pointer to the end of the SPI sequence

Definition at line 569 of file ltc_defs.h.

◆ spiSeqPtr

SPI_INTERFACE_CONFIG_s* LTC_STATE_s::spiSeqPtr

pointer to the SPI sequence to be measured

Definition at line 568 of file ltc_defs.h.

◆ state

LTC_STATEMACH_e LTC_STATE_s::state

state of Driver State Machine

Definition at line 523 of file ltc_defs.h.

◆ statereq

LTC_REQUEST_s LTC_STATE_s::statereq

current state request made to the state machine

Definition at line 522 of file ltc_defs.h.

◆ substate

uint8_t LTC_STATE_s::substate

current substate of the state machine

Definition at line 524 of file ltc_defs.h.

◆ taskCycleCnt

uint8_t LTC_STATE_s::taskCycleCnt

counts the current task cycle

Definition at line 556 of file ltc_defs.h.

◆ taskMode

LTC_TASK_TYPE_e LTC_STATE_s::taskMode

current task of the state machine

Definition at line 521 of file ltc_defs.h.

◆ tempMeasDiagErrorEntry

DIAG_ID_e LTC_STATE_s::tempMeasDiagErrorEntry

diagnosis entry for temperature measurement related events

Definition at line 577 of file ltc_defs.h.

◆ timer

uint16_t LTC_STATE_s::timer

time in ms before the state machine processes the next state, e.g. in counts of 1ms

Definition at line 520 of file ltc_defs.h.

◆ transmit_ongoing

bool LTC_STATE_s::transmit_ongoing

SPI transmissioncurrently ongoing

Definition at line 566 of file ltc_defs.h.

◆ triggerentry

uint8_t LTC_STATE_s::triggerentry

counter for re-entrance protection (function running flag)

Definition at line 541 of file ltc_defs.h.

◆ VoltageSampleTime

uint32_t LTC_STATE_s::VoltageSampleTime

time stamp at which the cell voltage were measured

Definition at line 547 of file ltc_defs.h.

◆ voltMeasDiagErrorEntry

DIAG_ID_e LTC_STATE_s::voltMeasDiagErrorEntry

diagnosis entry for voltage measurement related events

Definition at line 576 of file ltc_defs.h.

◆ voltMeasMode

LTC_ADCMODE_e LTC_STATE_s::voltMeasMode

current LTC ADCmeasurement mode (fast, normal or filtered)

Definition at line 528 of file ltc_defs.h.

The documentation for this struct was generated from the following file:
