Driver for the SPI module. More...

#include "spi.h"
#include "HL_reg_spi.h"
#include "HL_spi.h"
#include "HL_sys_common.h"
#include "dma.h"
#include "fstd_types.h"
#include "fsystem.h"
#include "io.h"
#include "mcu.h"
#include "os.h"
#include "spi_cfg-helper.h"
#include <stdint.h>

Include dependency graph for spi.c:

Go to the source code of this file.

Macros
#define	SPI_FLAG_REGISTER_TRANSMISSION_ERRORS (0x5Fu)


#define	SPI_HARDWARE_CHIP_SELECT_PIN_0 (0u)

#define	SPI_HARDWARE_CHIP_SELECT_PIN_1 (1u)

#define	SPI_HARDWARE_CHIP_SELECT_PIN_2 (2u)

#define	SPI_HARDWARE_CHIP_SELECT_PIN_3 (3u)

#define	SPI_HARDWARE_CHIP_SELECT_PIN_4 (4u)

#define	SPI_HARDWARE_CHIP_SELECT_PIN_5 (5u)

Functions
static void	SPI_InitializeChipSelects (void)

static uint8_t	SPI_GetChipSelectPin (SPI_CHIP_SELECT_TYPE_e chipSelectType, uint32_t chipSelectPin)

static uint8_t	SPI_GetHardwareChipSelectPin (uint8_t chipSelectPin)

void	SPI_Initialize (void)
	Initializes the SPI module. More...

STD_RETURN_TYPE_e	SPI_TransmitDummyByte (SPI_INTERFACE_CONFIG_s *pSpiInterface, uint32_t delay)
	Sends a dummy byte to wake up the SPI interface. More...

STD_RETURN_TYPE_e	SPI_TransmitData (SPI_INTERFACE_CONFIG_s pSpiInterface, uint16 pTxBuff, uint32 frameLength)
	Transmits data on SPI without DMA. More...

STD_RETURN_TYPE_e	SPI_TransmitReceiveData (SPI_INTERFACE_CONFIG_s pSpiInterface, uint16 pTxBuff, uint16 *pRxBuff, uint32 frameLength)
	Transmits and receives data on SPI without DMA. More...

void	SPI_FramTransmitReceiveData (SPI_INTERFACE_CONFIG_s pSpiInterface, uint16 pTxBuff, uint16 *pRxBuff, uint32 frameLength)
	Transmits and receives data on SPI without DMA, wrapper for FRAM. More...

STD_RETURN_TYPE_e	SPI_TransmitReceiveDataDma (SPI_INTERFACE_CONFIG_s pSpiInterface, uint16_t pTxBuff, uint16_t *pRxBuff, uint32_t frameLength)
	Transmits and receives data on SPI with DMA. More...

STD_RETURN_TYPE_e	SPI_Lock (uint8_t spi)
	Locks SPI interfaces. More...

void	SPI_Unlock (uint8_t spi)
	Unlocks SPI interfaces. More...

void	SPI_SetFunctional (spiBASE_t *pNode, enum spiPinSelect bit, bool hardwareControlled)
	Sets the functional of a SPI pin. More...

STD_RETURN_TYPE_e	SPI_SlaveSetReceiveDataDma (SPI_INTERFACE_CONFIG_s pSpiInterface, uint16_t pTxBuff, uint16_t *pRxBuff, uint32_t frameLength)
	Transmits and receives data on SPI with DMA. More...

void	SPI_DmaSendLastByte (uint8_t spiIndex)
	Used to send last byte per SPI. More...

void UNIT_TEST_WEAK_IMPL	spiNotification (spiBASE_t *spi, uint32 flags)
	SPI Interrupt callback. More...

STD_RETURN_TYPE_e	SPI_CheckInterfaceAvailable (spiBASE_t *pNode)
	Returns STD_OK if the SPI interface can be used again. More...

uint8_t	SPI_GetSpiIndex (spiBASE_t *pNode)
	Returns index of SPI node. More...

void	TEST_SPI_InitializeChipSelects (void)

uint8_t	TEST_SPI_GetChipSelectPin (SPI_CHIP_SELECT_TYPE_e csType, uint32_t csPin)

uint8_t	TEST_SPI_GetHardwareChipSelectPin (uint8_t csPin)

Variables
static uint32_t	spi_txLastWord [DMA_NUMBER_SPI_INTERFACES] = {0}

Detailed Description

Driver for the SPI module.

Copyright: © 2010 - 2023, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

″This product uses parts of foxBMS®″
″This product includes parts of foxBMS®″
″This product is derived from foxBMS®″

Author: foxBMS Team

Date: 2019-12-12 (date of creation)

Updated: 2023-10-12 (date of last update)

Version: v1.6.0

Prefix: SPI

Definition in file spi.c.

Macro Definition Documentation

◆ SPI_FLAG_REGISTER_TRANSMISSION_ERRORS

#define SPI_FLAG_REGISTER_TRANSMISSION_ERRORS (0x5Fu)

Bitfield to check for transmission errors in SPI FLAG register

Definition at line 74 of file spi.c.

◆ SPI_HARDWARE_CHIP_SELECT_PIN_0

#define SPI_HARDWARE_CHIP_SELECT_PIN_0 (0u)

Defines for hardware chip select pins

Definition at line 80 of file spi.c.

◆ SPI_HARDWARE_CHIP_SELECT_PIN_1

#define SPI_HARDWARE_CHIP_SELECT_PIN_1 (1u)

Defines for hardware chip select pins

Definition at line 81 of file spi.c.

◆ SPI_HARDWARE_CHIP_SELECT_PIN_2

#define SPI_HARDWARE_CHIP_SELECT_PIN_2 (2u)

Defines for hardware chip select pins

Definition at line 82 of file spi.c.

◆ SPI_HARDWARE_CHIP_SELECT_PIN_3

#define SPI_HARDWARE_CHIP_SELECT_PIN_3 (3u)

Defines for hardware chip select pins

Definition at line 83 of file spi.c.

◆ SPI_HARDWARE_CHIP_SELECT_PIN_4

#define SPI_HARDWARE_CHIP_SELECT_PIN_4 (4u)

Defines for hardware chip select pins

Definition at line 84 of file spi.c.

◆ SPI_HARDWARE_CHIP_SELECT_PIN_5

#define SPI_HARDWARE_CHIP_SELECT_PIN_5 (5u)

Defines for hardware chip select pins

Definition at line 85 of file spi.c.

Function Documentation

◆ SPI_CheckInterfaceAvailable()

STD_RETURN_TYPE_e SPI_CheckInterfaceAvailable ( spiBASE_t * pNode )

Returns STD_OK if the SPI interface can be used again.

This function just checks for SPI_PENDING and groups SPI_READY and SPI_...

Parameters

[in] pNode handle of the SPI node that should be checked

Returns: STD_RETURN_TYPE_e indicating wether the interface is ok to be used.

Definition at line 546 of file spi.c.

◆ SPI_DmaSendLastByte()

void SPI_DmaSendLastByte ( uint8_t spiIndex )

Used to send last byte per SPI.

This function is called in the DMA Tx callback. It is used to send the last byte with CSHOLD = 0.

Parameters

spiIndex SPI node in use

Definition at line 531 of file spi.c.

◆ SPI_FramTransmitReceiveData()

void SPI_FramTransmitReceiveData	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint16 *	pTxBuff,
		uint16 *	pRxBuff,
		uint32	frameLength
	)

Transmits and receives data on SPI without DMA, wrapper for FRAM.

This function can be used to send and receive data via SPI. SPI communication is performed in blocking mode and chip select is set/reset automatically. It does not drive the Chip Select (neither hardware nor software) as this is done directly in the FRAM functions.

Parameters

pSpiInterface	pointer to SPI interface configuration
pTxBuff	pointer to data that is transmitted by the SPI interface
pRxBuff	pointer to data that is received by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

Definition at line 279 of file spi.c.

◆ SPI_GetChipSelectPin()

static uint8_t SPI_GetChipSelectPin	(	SPI_CHIP_SELECT_TYPE_e	chipSelectType,
		uint32_t	chipSelectPin
	)

static

Definition at line 125 of file spi.c.

Here is the call graph for this function:

◆ SPI_GetHardwareChipSelectPin()

static uint8_t SPI_GetHardwareChipSelectPin ( uint8_t chipSelectPin )

static

Definition at line 96 of file spi.c.

◆ SPI_GetSpiIndex()

uint8_t SPI_GetSpiIndex ( spiBASE_t * pNode )

Returns index of SPI node.

Parameters

[in] pNode handle of the SPI node that should be checked

Returns: index of SPI node

Invalid SPI node

Definition at line 556 of file spi.c.

◆ SPI_Initialize()

void SPI_Initialize ( void )

Initializes the SPI module.

First the low level initialization (using the HAL functions) is done. After that the chip select setup for the peripherals is configured.

Definition at line 154 of file spi.c.

Here is the call graph for this function:

◆ SPI_InitializeChipSelects()

static void SPI_InitializeChipSelects ( void )

static

Definition at line 138 of file spi.c.

Here is the call graph for this function:

◆ SPI_Lock()

STD_RETURN_TYPE_e SPI_Lock ( uint8_t spi )

Locks SPI interfaces.

This function is used to change the state of the SPI_busy_flags variable to "locked".

Parameters

spi	SPI interface to be locked (0-4 on the TMS570LC4357)

Returns: STD_OK if SPI interface could be locked, STD_NOT_OK otherwise

Definition at line 402 of file spi.c.

Here is the call graph for this function:

◆ SPI_SetFunctional()

void SPI_SetFunctional	(	spiBASE_t *	pNode,
		enum spiPinSelect	bit,
		bool	hardwareControlled
	)

Sets the functional of a SPI pin.

SPI pins in this HAL can have functional state SPI (for when it is controlled by the SPI hardware) and functional state GIO (for when it is controlled as a GIO pin).

Parameters

[in,out]	pNode	handle of the SPI node that should be configured
[in]	bit	bit that should be manipulated, other pins remain unchanged
[in]	hardwareControlled	Whether the bit should be hardware controlled (true) or not (false)

Definition at line 429 of file spi.c.

◆ SPI_SlaveSetReceiveDataDma()

STD_RETURN_TYPE_e SPI_SlaveSetReceiveDataDma	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint16_t *	pTxBuff,
		uint16_t *	pRxBuff,
		uint32_t	frameLength
	)

Transmits and receives data on SPI with DMA.

This function can be used to send and receive data via SPI. SPI communication is performed in blocking mode and chip select is set/reset automatically..

Parameters

pSpiInterface	pointer to SPI interface configuration
pTxBuff	pointer to data that is transmitted by the SPI interface
pRxBuff	pointer to data that is received by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

SPI receive works only with HW Chip Select

Definition at line 463 of file spi.c.

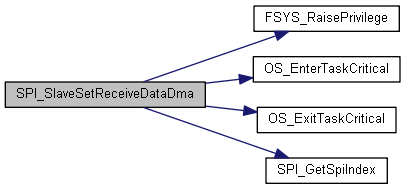

Here is the call graph for this function:

◆ SPI_TransmitData()

STD_RETURN_TYPE_e SPI_TransmitData	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint16 *	pTxBuff,
		uint32	frameLength
	)

Transmits data on SPI without DMA.

This function can be used to send and receive data via SPI. SPI communication is performed in blocking mode and chip select is set/reset automatically.

Parameters

pSpiInterface	pointer to SPI interface configuration
pTxBuff	pointer to data that is transmitted by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

SW Chip Select

Set SPI Chip Select pins as GIOs

Activate Chip Select

HW Chip Select

Activate HW Chip Select according to bitmask register CSNR by setting pins as SPI functional pins

First deactivate all HW Chip Selects

Bitmask = 0 --> HW CS active --> write to PC0 to set pin as SPI pin (and not GIO)

SW Chip Select

Deactivate Chip Select

Definition at line 169 of file spi.c.

Here is the call graph for this function:

◆ SPI_TransmitDummyByte()

STD_RETURN_TYPE_e SPI_TransmitDummyByte	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint32_t	delay
	)

Sends a dummy byte to wake up the SPI interface.

Parameters

pSpiInterface	pointer to SPI interface configuration
delay	delay to wait after dummy byte transfer

Returns: status of the SPI transfer

Definition at line 159 of file spi.c.

Here is the call graph for this function:

◆ SPI_TransmitReceiveData()

STD_RETURN_TYPE_e SPI_TransmitReceiveData	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint16 *	pTxBuff,
		uint16 *	pRxBuff,
		uint32	frameLength
	)

Transmits and receives data on SPI without DMA.

This function can be used to send and receive data via SPI. SPI communication is performed in blocking mode and chip select is set/reset automatically.

Parameters

pSpiInterface	pointer to SPI interface configuration
pTxBuff	pointer to data that is transmitted by the SPI interface
pRxBuff	pointer to data that is received by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

SW Chip Select

Set SPI Chip Select pins as GIOs

Activate Chip Select

HW Chip Select

Activate HW Chip Select according to bitmask register CSNR by setting pins as SPI functional pins

First deactivate all HW Chip Selects

Bitmask = 0 --> HW CS active --> write to PC0 to set pin as SPI pin (and not GIO)

SW Chip Select

Deactivate Chip Select

Definition at line 221 of file spi.c.

Here is the call graph for this function:

◆ SPI_TransmitReceiveDataDma()

STD_RETURN_TYPE_e SPI_TransmitReceiveDataDma	(	SPI_INTERFACE_CONFIG_s *	pSpiInterface,
		uint16_t *	pTxBuff,
		uint16_t *	pRxBuff,
		uint32_t	frameLength
	)

Transmits and receives data on SPI with DMA.

This function can be used to send and receive data via SPI. SPI communication is performed in blocking mode and chip select is set/reset automatically..

Parameters

pSpiInterface	pointer to SPI interface configuration
pTxBuff	pointer to data that is transmitted by the SPI interface
pRxBuff	pointer to data that is received by the SPI interface
frameLength	number of bytes to be transmitted by the SPI interface

Returns: status of the SPI transfer

SPI over DMA currently only compatible with HW Chip Select

Activate HW Chip Select according to bitmask register CSNR by setting pins as SPI functional pins

First deactivate all HW Chip Selects

Bitmask = 0 --> HW CS active --> write to PC0 to set pin as SPI pin (and not GIO)

Set number of Tx words to send Last word sent in ISR to set CSHOLD = 0

Send first word without DMA because when writing config to DAT1 the HW CS pin are asserted immediately, even if SPIEN bit in GCR1 is 0. The C2TDELAY is then taken into account before the transmission.

Definition at line 292 of file spi.c.

Here is the call graph for this function:

◆ SPI_Unlock()

void SPI_Unlock ( uint8_t spi )

Unlocks SPI interfaces.

This function is used to change the state of the SPI_busy_flags variable to "unlocked".

Parameters

spi	SPI interface to be unlocked (0-4 on the TMS570LC4357)

Definition at line 419 of file spi.c.

Here is the call graph for this function:

◆ spiNotification()

void UNIT_TEST_WEAK_IMPL spiNotification	(	spiBASE_t *	spi,
		uint32	flags
	)

SPI Interrupt callback.

Parameters

[in]	spi	spi device
	flags	flags to be passed

Definition at line 543 of file spi.c.

◆ TEST_SPI_GetChipSelectPin()

uint8_t TEST_SPI_GetChipSelectPin	(	SPI_CHIP_SELECT_TYPE_e	csType,
		uint32_t	csPin
	)

Definition at line 583 of file spi.c.

Here is the call graph for this function:

◆ TEST_SPI_GetHardwareChipSelectPin()

uint8_t TEST_SPI_GetHardwareChipSelectPin ( uint8_t csPin )

Definition at line 586 of file spi.c.

Here is the call graph for this function:

◆ TEST_SPI_InitializeChipSelects()

void TEST_SPI_InitializeChipSelects ( void )

Definition at line 580 of file spi.c.

Here is the call graph for this function:

Variable Documentation

◆ spi_txLastWord

uint32_t spi_txLastWord[DMA_NUMBER_SPI_INTERFACES] = {0}

static

Definition at line 77 of file spi.c.

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ SPI_FLAG_REGISTER_TRANSMISSION_ERRORS

◆ SPI_HARDWARE_CHIP_SELECT_PIN_0

◆ SPI_HARDWARE_CHIP_SELECT_PIN_1

◆ SPI_HARDWARE_CHIP_SELECT_PIN_2

◆ SPI_HARDWARE_CHIP_SELECT_PIN_3

◆ SPI_HARDWARE_CHIP_SELECT_PIN_4

◆ SPI_HARDWARE_CHIP_SELECT_PIN_5

Function Documentation

◆ SPI_CheckInterfaceAvailable()

◆ SPI_DmaSendLastByte()

◆ SPI_FramTransmitReceiveData()

◆ SPI_GetChipSelectPin()

◆ SPI_GetHardwareChipSelectPin()

◆ SPI_GetSpiIndex()

◆ SPI_Initialize()

◆ SPI_InitializeChipSelects()

◆ SPI_Lock()

◆ SPI_SetFunctional()

◆ SPI_SlaveSetReceiveDataDma()

◆ SPI_TransmitData()

◆ SPI_TransmitDummyByte()

◆ SPI_TransmitReceiveData()

◆ SPI_TransmitReceiveDataDma()

◆ SPI_Unlock()

◆ spiNotification()

◆ TEST_SPI_GetChipSelectPin()

◆ TEST_SPI_GetHardwareChipSelectPin()

◆ TEST_SPI_InitializeChipSelects()

Variable Documentation

◆ spi_txLastWord
