Functions in order to have a registry of monitoring ICs. More...

#include "mxm_cfg.h"
#include "mxm_1785x_tools.h"
#include "mxm_basic_defines.h"

Include dependency graph for mxm_registry.h:

This graph shows which files directly or indirectly include this file:

Functions
void	MXM_MonRegistryInit (MXM_MONITORING_INSTANCE_s *pState)
	Initialize monitoring registry. More...

STD_RETURN_TYPE_e	MXM_MonRegistryConnectDevices (MXM_MONITORING_INSTANCE_s *pState, uint8_t numberOfDevices)
	Mark devices as connected in the registry and set the address. More...

uint8_t	MXM_MonRegistryGetHighestConnected5XDevice (const MXM_MONITORING_INSTANCE_s *const kpkState)
	Parse number of highest connected device from monitoring- register. More...

void	MXM_MonRegistryParseIdIntoDevices (MXM_MONITORING_INSTANCE_s *pState, uint8_t rxBufferLength, MXM_REG_NAME_e type)
	Parse ID (1 or 2) into the registry. More...

void	MXM_MonRegistryParseVersionIntoDevices (MXM_MONITORING_INSTANCE_s *pState, uint8_t rxBufferLength)
	Parse Version into the registry. More...

void	MXM_MonRegistryParseStatusFmeaIntoDevices (MXM_MONITORING_INSTANCE_s *pState, uint8_t rxBufferLength)
	Parse STATUS or FMEA into the registry. More...

bool	MXM_CheckIfADeviceHasBeenReset (const MXM_MONITORING_INSTANCE_s *const kpkState)
	check if one of the devices in the registry has the ALRTRST bit set More...

bool	MXM_CheckIfADeviceIsConnected (const MXM_MONITORING_INSTANCE_s *const kpkState, uint8_t device)
	check if a device is connected More...

Detailed Description

Functions in order to have a registry of monitoring ICs.

Copyright: © 2010 - 2022, Fraunhofer-Gesellschaft zur Foerderung der angewandten Forschung e.V. All rights reserved.

SPDX-License-Identifier: BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

We kindly request you to use one or more of the following phrases to refer to foxBMS in your hardware, software, documentation or advertising materials:

″This product uses parts of foxBMS®″
″This product includes parts of foxBMS®″
″This product is derived from foxBMS®″

Author: foxBMS Team

Date: 2020-07-16 (date of creation)

Updated: 2022-10-27 (date of last update)

Version: v1.4.1

Prefix: MXM

Monitoring registry stores information about the connected ICs.

Definition in file mxm_registry.h.

Function Documentation

◆ MXM_CheckIfADeviceHasBeenReset()

bool MXM_CheckIfADeviceHasBeenReset ( const MXM_MONITORING_INSTANCE_s *const kpkState )

check if one of the devices in the registry has the ALRTRST bit set

If a monitoring device is reset, it will set the ALRTRST bit in MXM_REG_STATUS1. This should not happen during normal operation. If this happens, initialization of the devices is lost and has to be restored. This is done by reseting the state machine.

Parameters

[in,out] kpkState state-pointer

Returns: true if a device has been reset, false otherwise

Definition at line 239 of file mxm_registry.c.

Here is the call graph for this function:

◆ MXM_CheckIfADeviceIsConnected()

bool MXM_CheckIfADeviceIsConnected	(	const MXM_MONITORING_INSTANCE_s *const	kpkState,
		uint8_t	device
	)

check if a device is connected

Checks the connected state in the registry

Parameters

[in]	kpkState	state-pointer
[in]	device	device number

Returns: true if a device is connected, false otherwise

Definition at line 262 of file mxm_registry.c.

◆ MXM_MonRegistryConnectDevices()

STD_RETURN_TYPE_e MXM_MonRegistryConnectDevices	(	MXM_MONITORING_INSTANCE_s *	pState,
		uint8_t	numberOfDevices
	)

Mark devices as connected in the registry and set the address.

Takes the number of connected (adjacent!) devices and marks them in the registry.

Parameters

[in,out]	pState	state-pointer
[in]	numberOfDevices	number of normal satellites

Returns: STD_OK if the number of modules is OK, STD_NOT_OK otherwise

Definition at line 96 of file mxm_registry.c.

◆ MXM_MonRegistryGetHighestConnected5XDevice()

uint8_t MXM_MonRegistryGetHighestConnected5XDevice ( const MXM_MONITORING_INSTANCE_s *const kpkState )

Parse number of highest connected device from monitoring- register.

Parameters

[in] kpkState state-pointer

Returns: MXM_MONITORING_INSTANCE_s::highest5xDevice

Definition at line 115 of file mxm_registry.c.

◆ MXM_MonRegistryInit()

void MXM_MonRegistryInit ( MXM_MONITORING_INSTANCE_s * pState )

Initialize monitoring registry.

Sets the connected state of every entry of the registry of monitoring ICs to false.

Parameters

[in] pState state-pointer

Definition at line 79 of file mxm_registry.c.

◆ MXM_MonRegistryParseIdIntoDevices()

void MXM_MonRegistryParseIdIntoDevices	(	MXM_MONITORING_INSTANCE_s *	pState,
		uint8_t	rxBufferLength,
		MXM_REG_NAME_e	type
	)

Parse ID (1 or 2) into the registry.

Parameters

[in,out]	pState	state-pointer
[in]	rxBufferLength	length of the rxBuffer
[in]	type	type of register (has to be MXM_REG_ID1 or MXM_REG_ID2)

Definition at line 121 of file mxm_registry.c.

Here is the call graph for this function:

◆ MXM_MonRegistryParseStatusFmeaIntoDevices()

void MXM_MonRegistryParseStatusFmeaIntoDevices	(	MXM_MONITORING_INSTANCE_s *	pState,
		uint8_t	rxBufferLength
	)

Parse STATUS or FMEA into the registry.

Parameters

[in,out]	pState	state-pointer
[in]	rxBufferLength	length of the rxBuffer

Definition at line 192 of file mxm_registry.c.

Here is the call graph for this function:

◆ MXM_MonRegistryParseVersionIntoDevices()

void MXM_MonRegistryParseVersionIntoDevices	(	MXM_MONITORING_INSTANCE_s *	pState,
		uint8_t	rxBufferLength
	)

Parse Version into the registry.

Parameters

[in,out]	pState	state-pointer
[in]	rxBufferLength	length of the rxBuffer

Definition at line 152 of file mxm_registry.c.

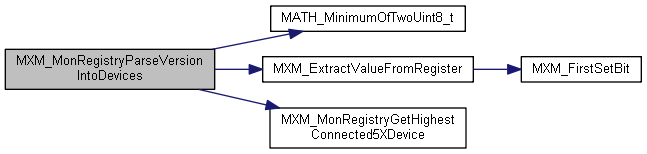

Here is the call graph for this function:
